SF
SF408
Product Features & Attributes

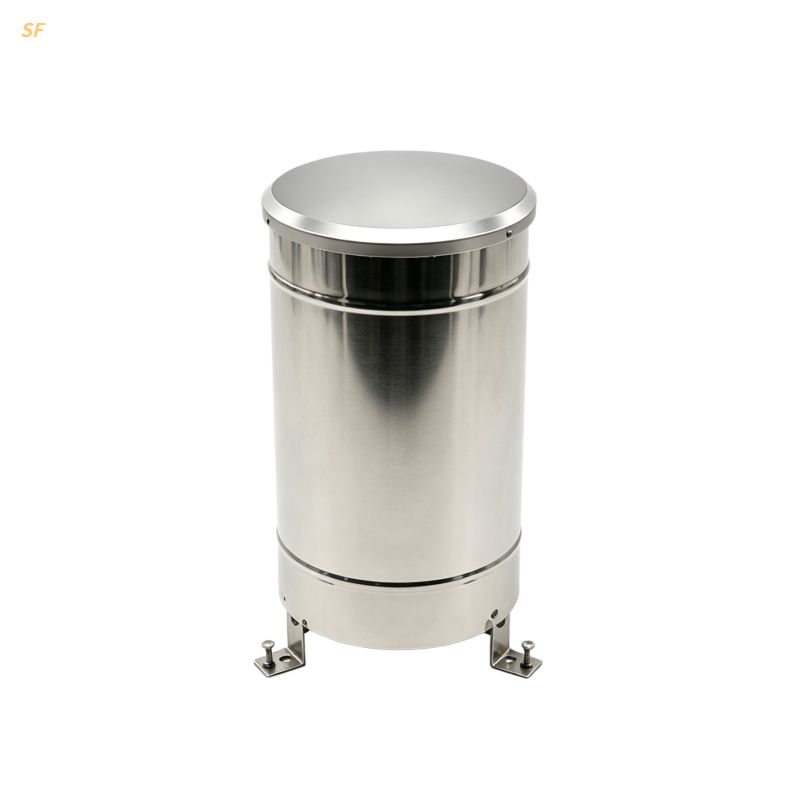

This tipping bucket rain gauge is used for real-time rainfall monitoring in construction sites, hydrology, meteorology and other fields. It is important equipment for construction site safety management, municipal drainage dispatching and hydrological monitoring.
Working Principle: Rainwater enters through the orifice into the tipping bucket. When the water volume reaches the set value, the bucket tips automatically. Each tip generates a pulse signal, which is converted to rainfall data.
Technical Features:
Orifice diameter Φ200mm, meeting standard requirements
Resolution 0.1/0.2/0.5mm optional for different accuracy needs
Rainfall intensity range 0~4mm/min, max 8mm/min for heavy rain conditions
Measurement accuracy ≤±3% for reliable data
Supports RS485, analog, pulse output modes for various data acquisition systems
Power supply DC 4.5~30V, low power consumption (≤0.24W)
Operating temperature 0~55℃ for outdoor construction site use
Applications:
Construction site real-time rainfall monitoring
Municipal engineering drainage dispatching
Hydrological station rainfall monitoring
Meteorological observation
Smart construction site systems
Geological disaster warning
Available in different specifications: different resolutions (0.1/0.2/0.5mm), different output modes (RS485/analog/pulse), and different power supply options (DC 4.5~30V, AC 220V) to suit various construction sites and monitoring systems.
Mainly used in construction sites, municipal engineering, hydrological monitoring stations, weather stations, geological disaster monitoring points, smart construction site system integrators, and more.
