| Main Material: | |
|---|---|
| Overall Length: | |
| Overall Width: | |
| Plate Thickness: | |
| Effective Testing Grid: | |
| Grid Scale Precision: | |
| Positioning Fixing Posts: | |
| Quantity: | |
SF
SF266

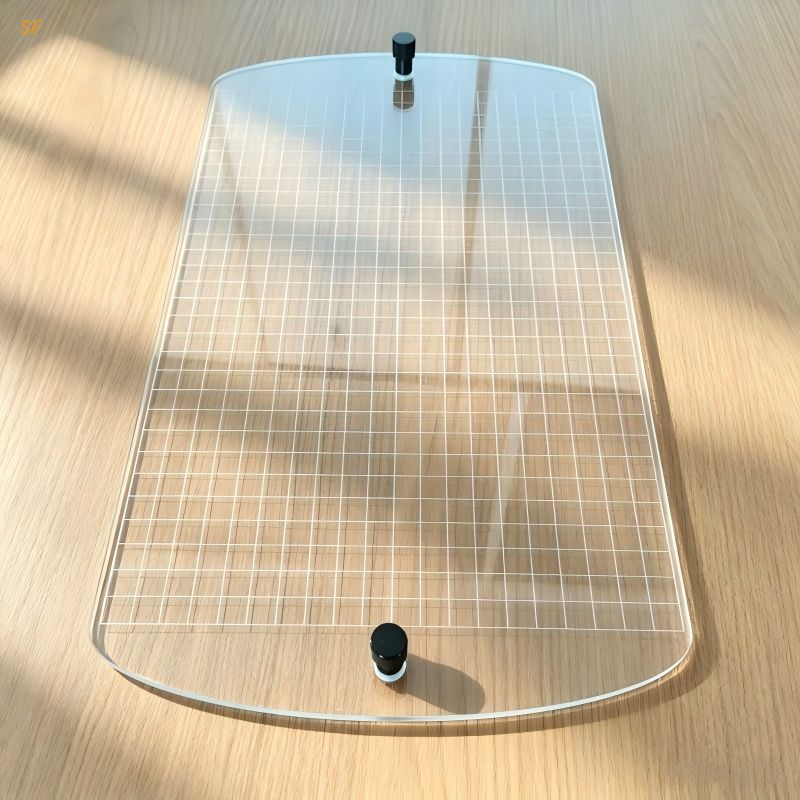

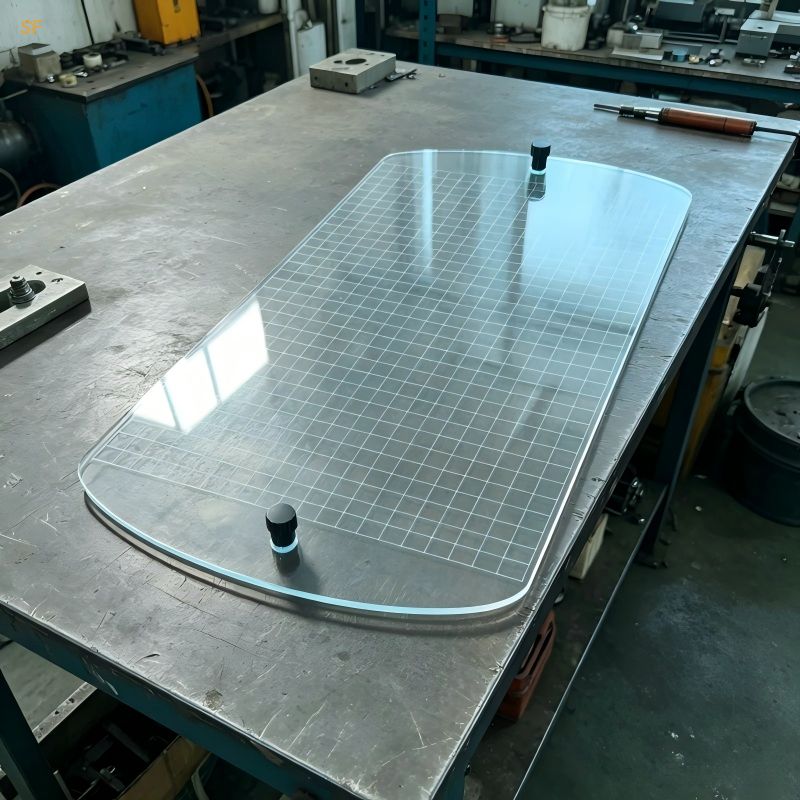

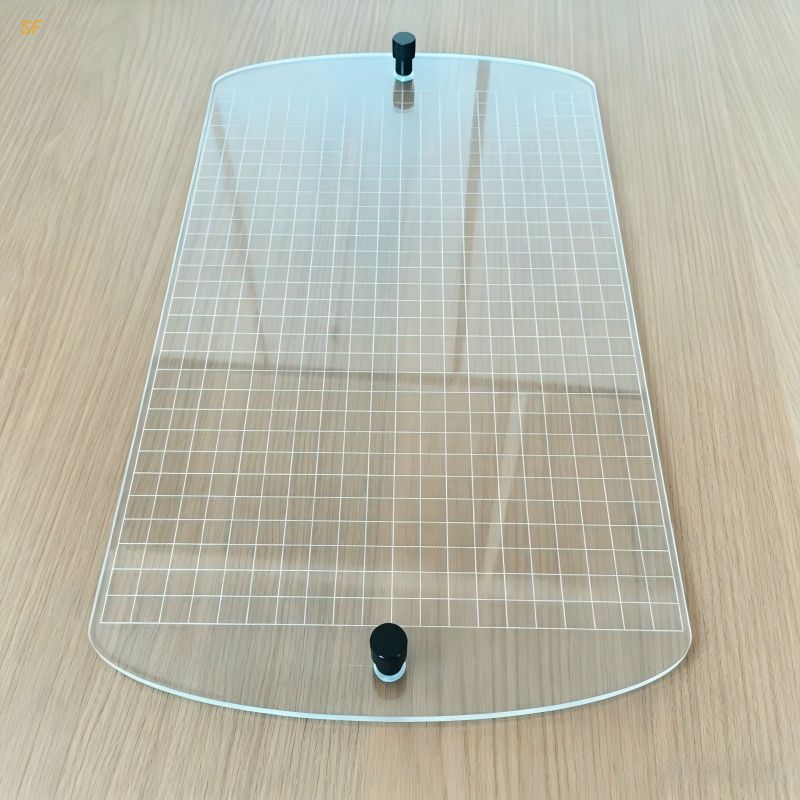

This thermal insulation bonding area grid plate (also known as exterior wall insulation testing plate or bonding coverage test plate) is made of high-transmittance acrylic with precisely etched standard scale grids. It is used for bonding area detection and point calibration verification of exterior wall insulation systems, allowing intuitive measurement of bonding coverage to determine insulation board adhesion quality.
Material Features: High-transmittance acrylic provides good light transmission for easy observation of the bonding condition on the insulation board surface. Curved round edge treatment for comfortable and safe handling.
Structural Parameters: Overall dimension 350×220mm, plate thickness 5mm, effective testing grid 300×200mm, grid precision 10mm per grid. Equipped with 2 positioning fixing posts to ensure accurate positioning during testing. Net weight per piece 0.45kg, lightweight and portable.
Environmental Adaptability: Operating temperature range -20℃~60℃ with strong weather resistance, suitable for various on-site testing environments.

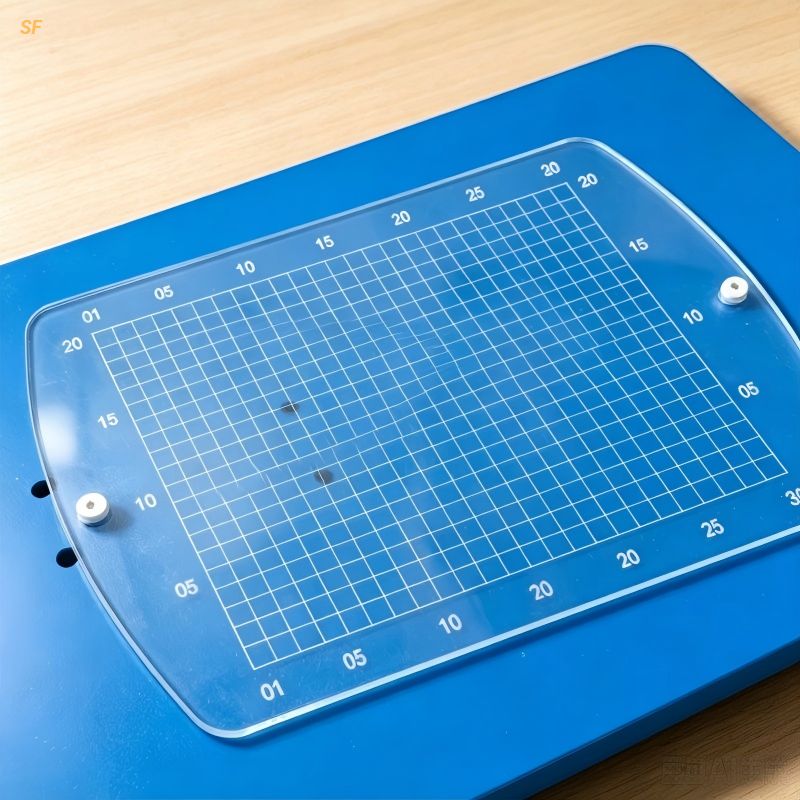

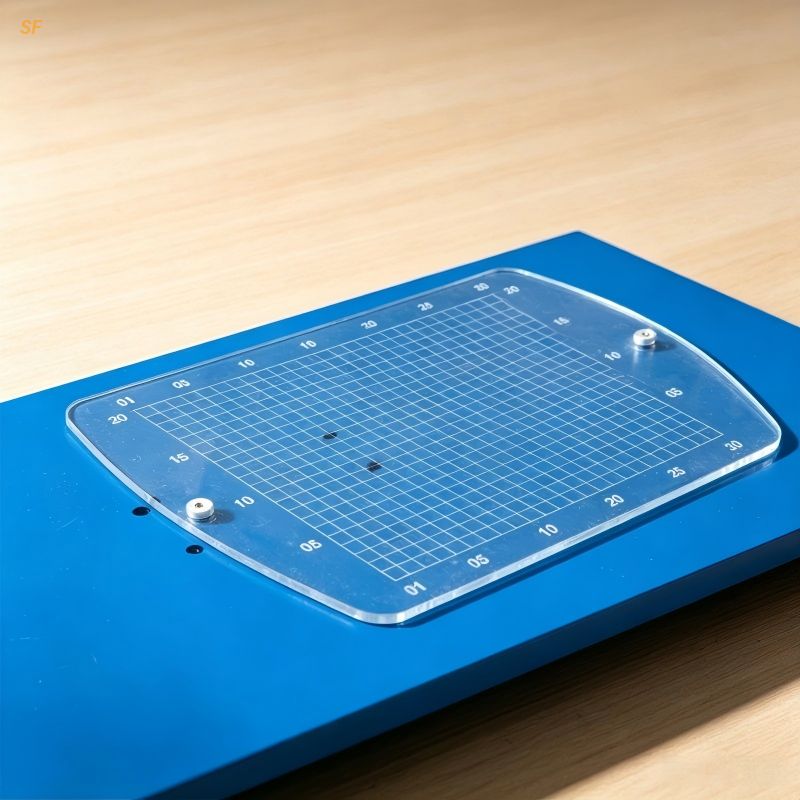

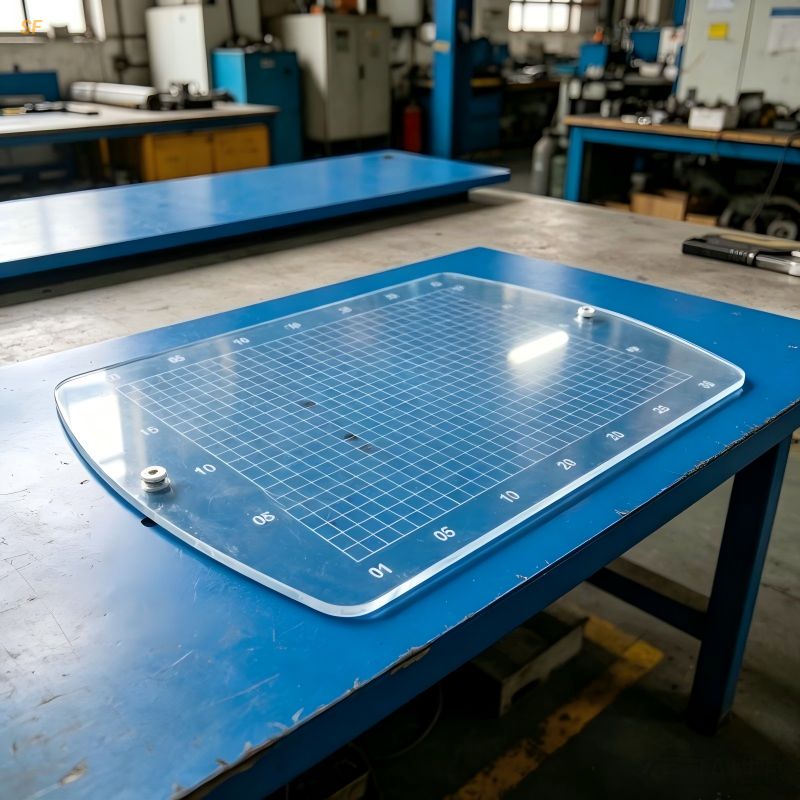

Available in different specifications: different grid sizes (e.g., 200×200mm, 300×200mm, 400×300mm, etc.) and different overall dimensions to meet various insulation board sizes and different testing standards.
Easy to use and durable. Suitable for construction sites, engineering quality testing stations, insulation material manufacturers, project acceptance units, and more for on-site testing and acceptance of exterior wall insulation system bonding area.
