Safety Helmet Anti-static Tester Anti-static Performance Tester Surface Resistivity Measurement EN397/ANSI Z89 Compliant Helmet Anti-static Testing Portable OEM Supported

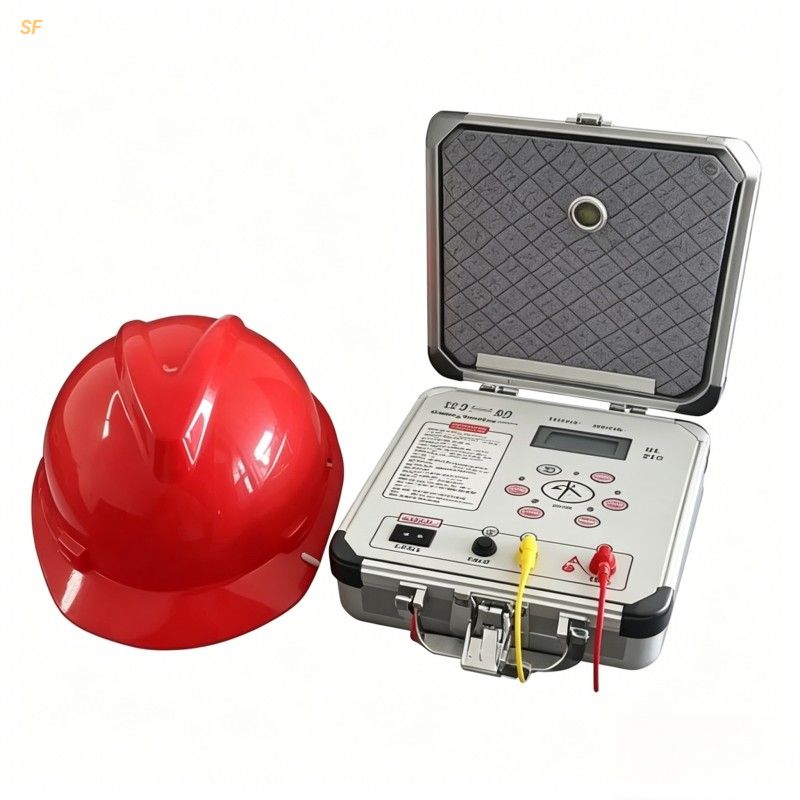

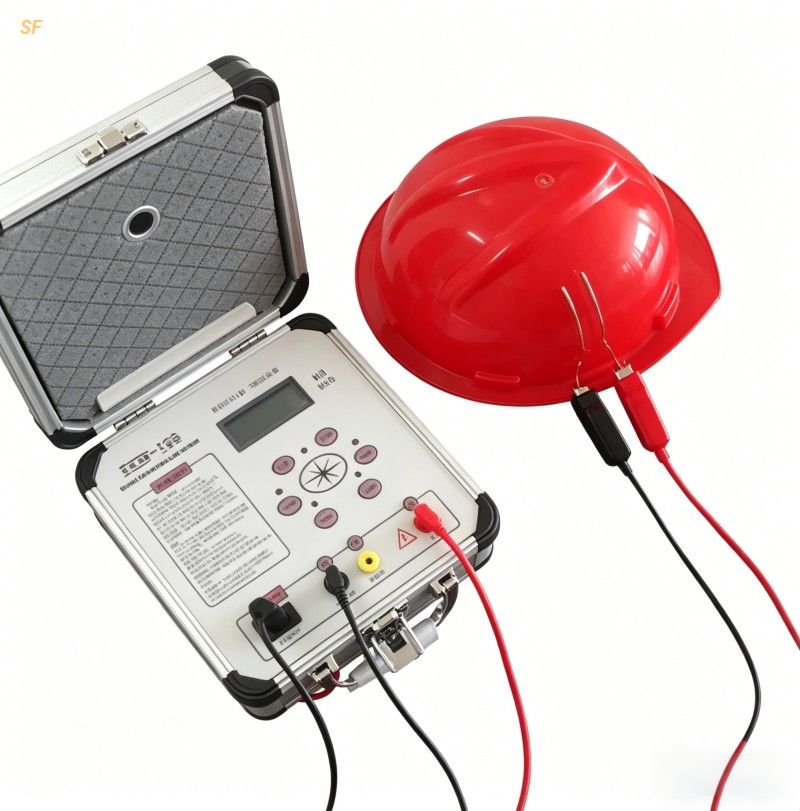

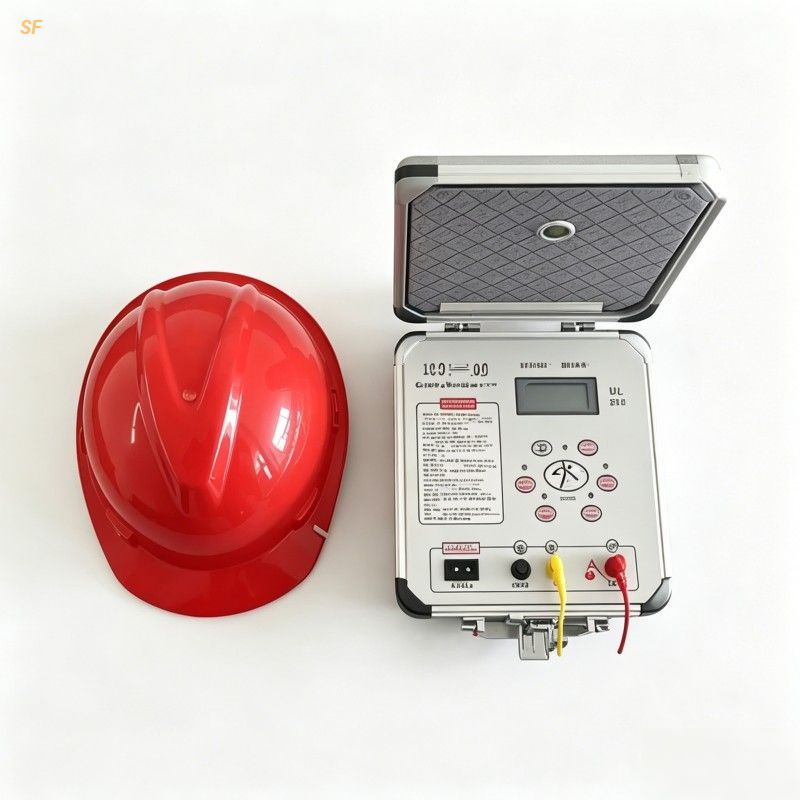

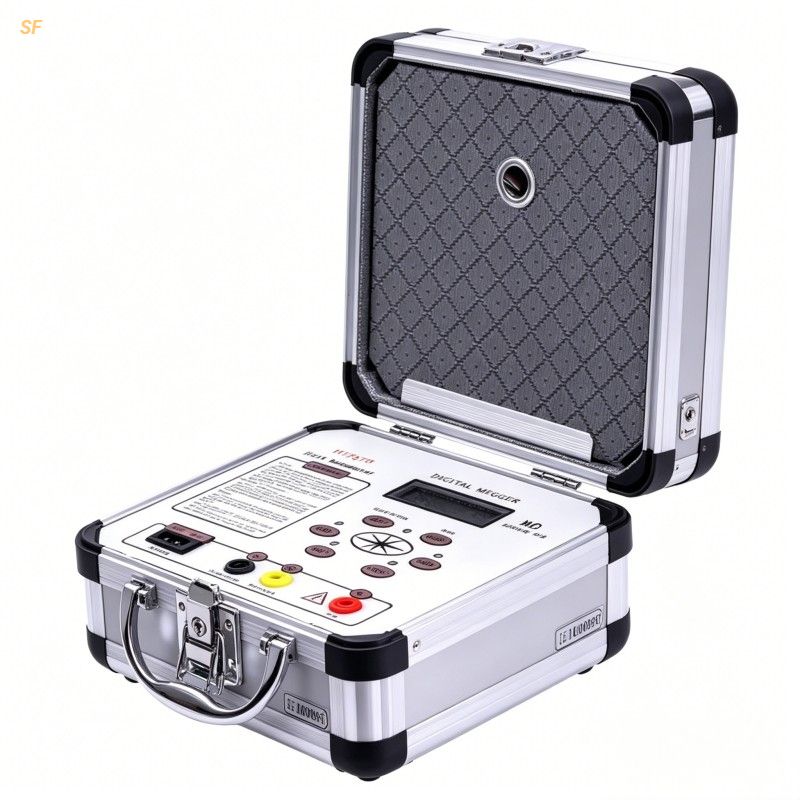

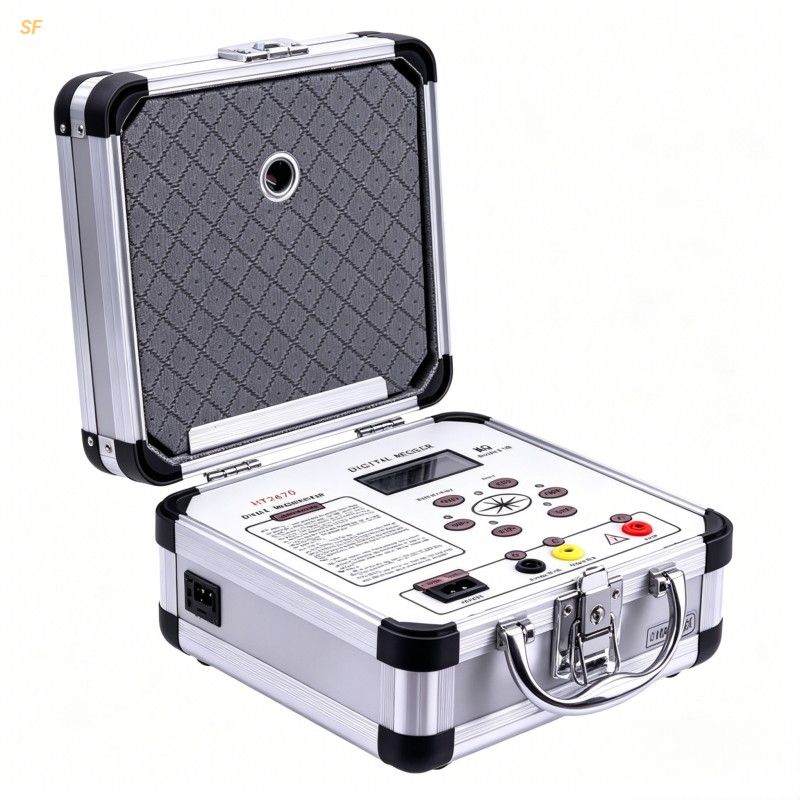

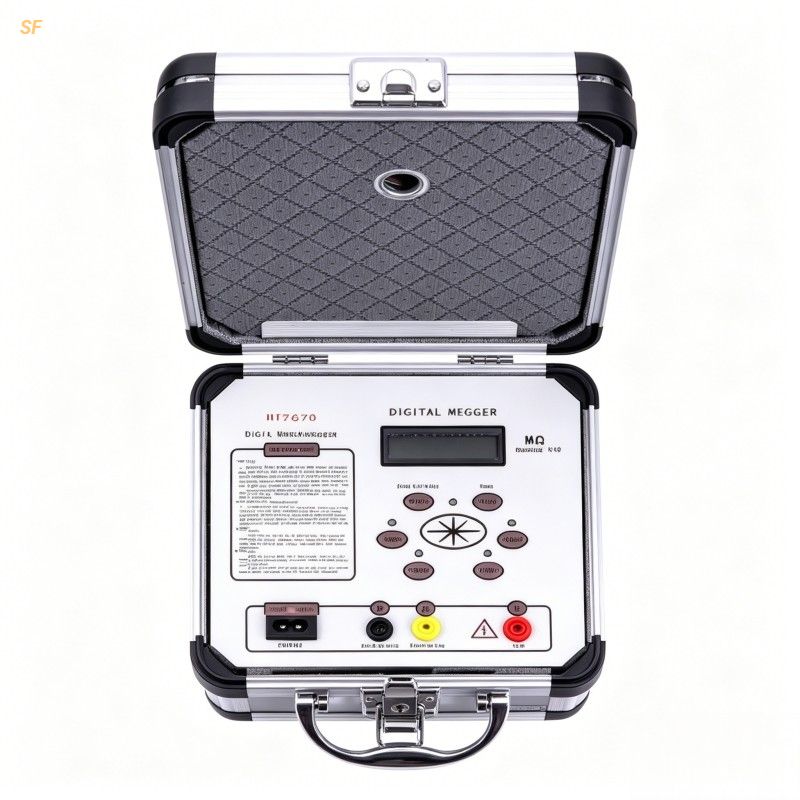

The safety helmet anti-static tester is a specialized device designed according to EN 397, ANSI Z89.1, and GB/T 2812 standards to evaluate the anti-static performance of safety helmets, engineering plastics, and head protection. It uses the parallel electrode method with a high-precision resistance meter to measure surface resistivity, determining whether it meets the anti-static requirement (≤1×10⁹Ω). Under controlled temperature and humidity, two parallel metal foil electrodes (100mm×1mm) are attached to the flat outer surface of the helmet, a 100V DC test voltage is applied, and the resistance value is recorded. The test is repeated after swapping electrodes, and the average is taken. The instrument features a wide measurement range (typically 1×10⁴Ω–2×10¹⁰Ω), high accuracy (approx. ±1% error), automatic range conversion, and over-limit alarm. Portable with AC/DC dual power and built-in rechargeable battery. Widely used in helmet manufacturing, quality inspection labs, power utilities, mining, and petrochemicals. OEM customization supported.
