Prebored Pressuremeter Menard Pressuremeter In-Situ Soil Pressure Testing Equipment Foundation Bearing Capacity Pressuremeter Modulus Geotechnical Investigation ASTM Compliant

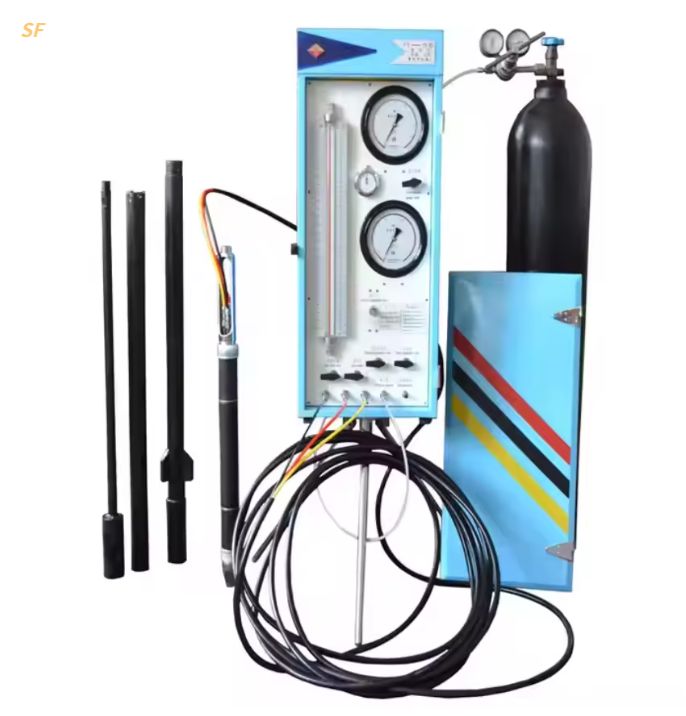

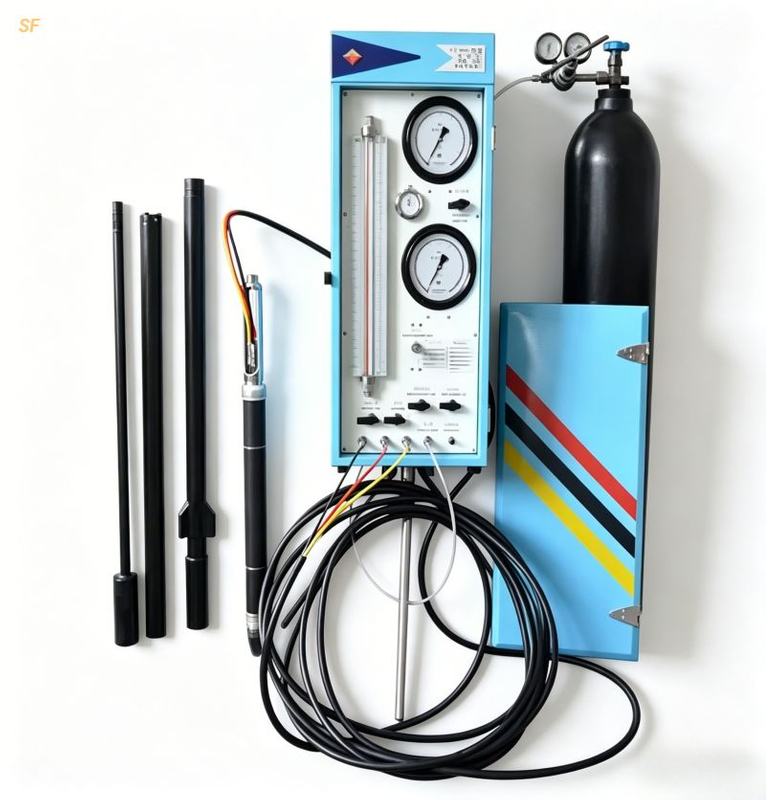

The prebored pressuremeter (Menard type) features a tricell probe design with a central measuring cell and two guard cells. A borehole is drilled to the test depth, and the probe is lowered. The control unit pressurizes the measuring cell, expanding the rubber membrane against the borehole wall while the guard cells expand at the same pressure to ensure plane strain conditions. Pressure and volume changes are recorded to plot a pressure-volume curve, from which creep pressure, limit pressure, and pressuremeter modulus are determined. The system consists of the pressuremeter probe, pressure control unit, volume measurement system, and high-pressure tubing. A digital recorder is optional for automatic data acquisition. Rugged construction for harsh field environments.

• Menard tricell probe design with central measuring cell and two guard cells for high accuracy

• Prebored testing method suitable for clay, silt, sand, weathered rock, soft rock, etc.

• Maximum test pressure up to several MPa, test depth up to tens of meters

• High-precision pressure control for stable and reliable data

• Large effective range volume measurement system with minimal error

• Multiple probe sizes available for different borehole diameters

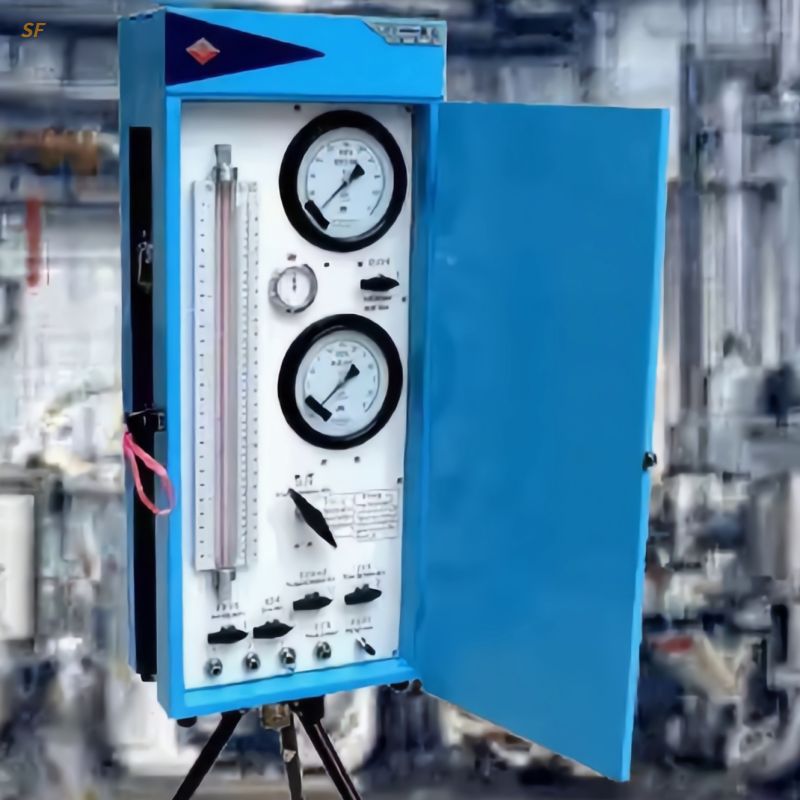

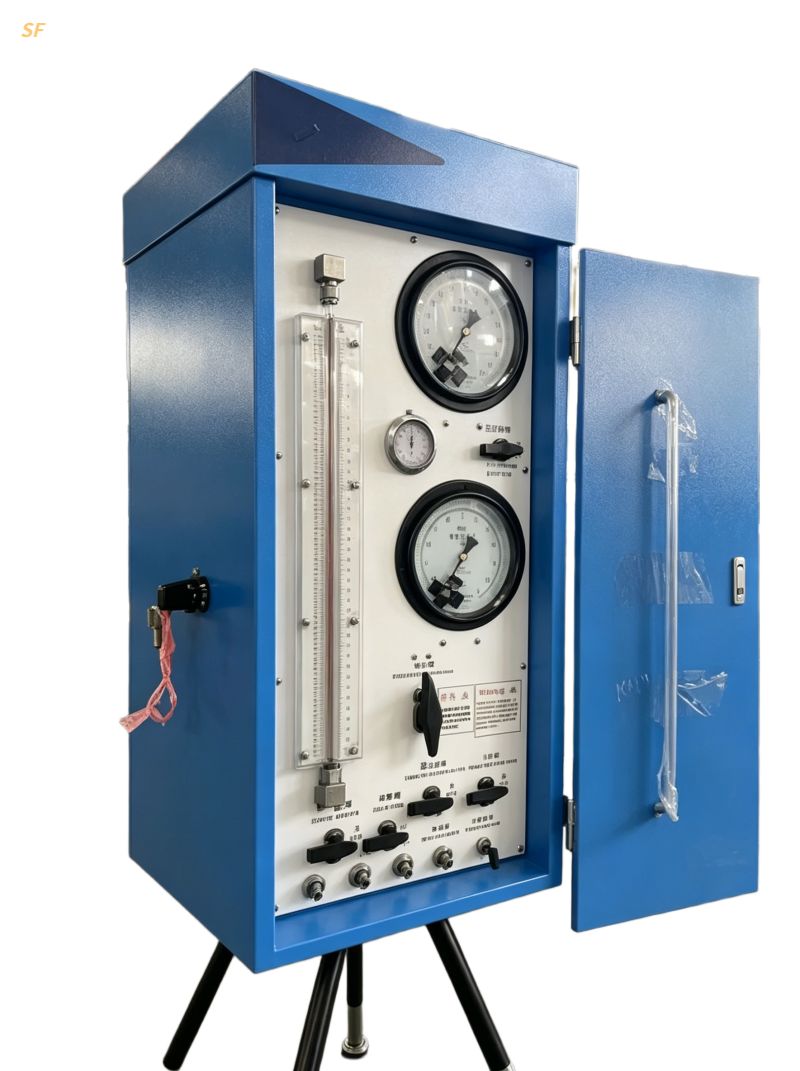

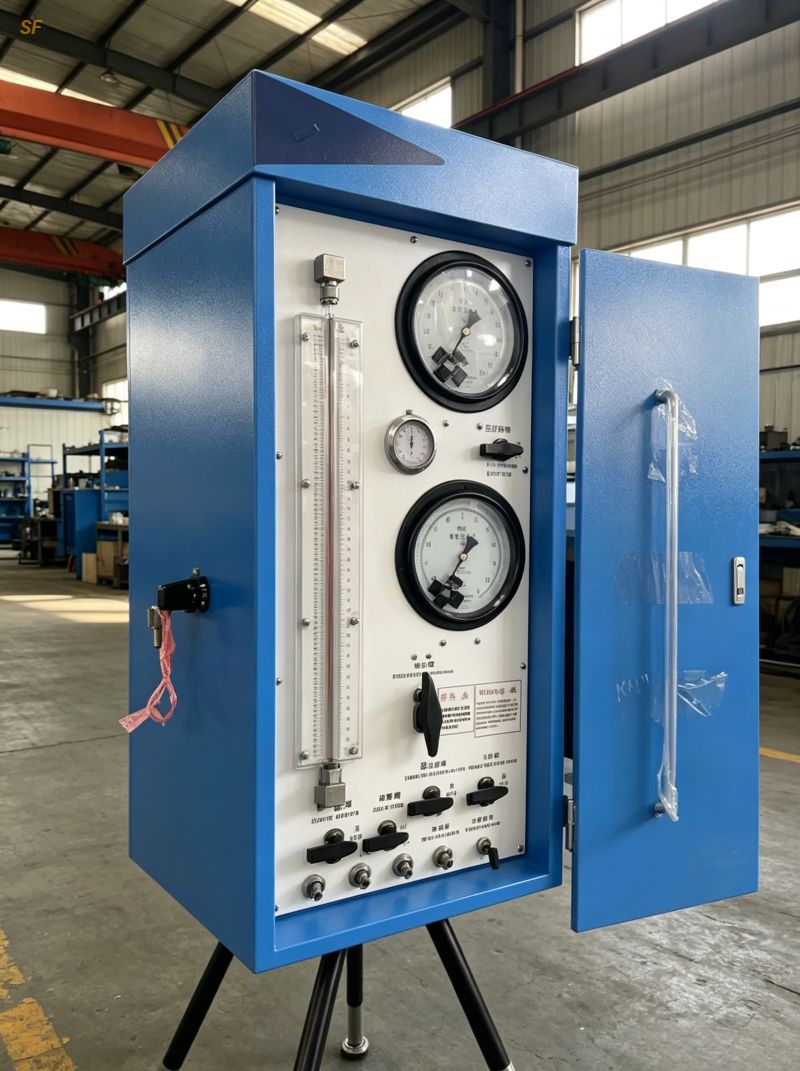

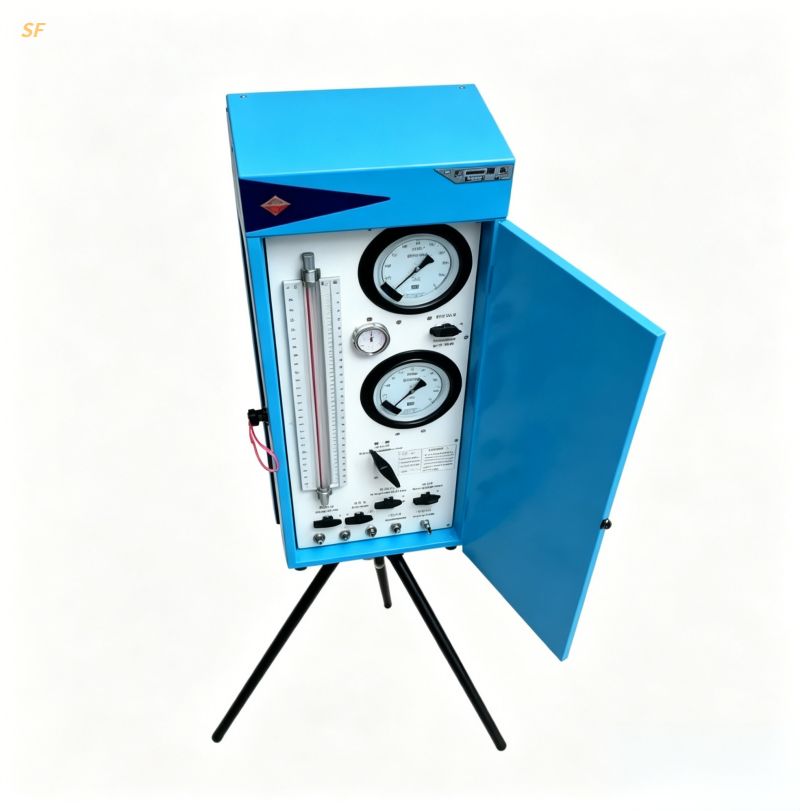

• Tripod-mounted control unit with high-pressure tubing, nitrogen cylinder as pressure source

• Optional digital recorder for automatic display and storage of pressure and displacement data

• Compliant with ASTM D4719, BS EN ISO 22476-4 and other international standards

• OEM customization supported (logo, packaging, user manual, calibration certificate, etc.)
