| Rated Power: | |
|---|---|
| Rated Voltage: | |
| Rated Temperature: | |
| Chamber Size: | |
| Chamber Volume: | |
| Heat-up Time: | |
| Temperature Accuracy: | |
| Quantity: | |
SF
SF289

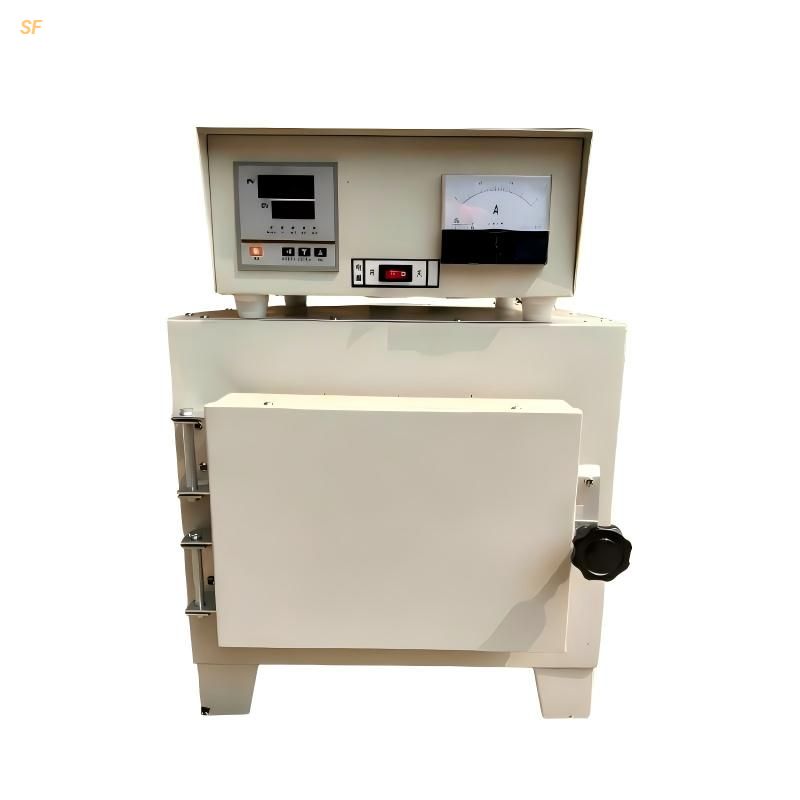

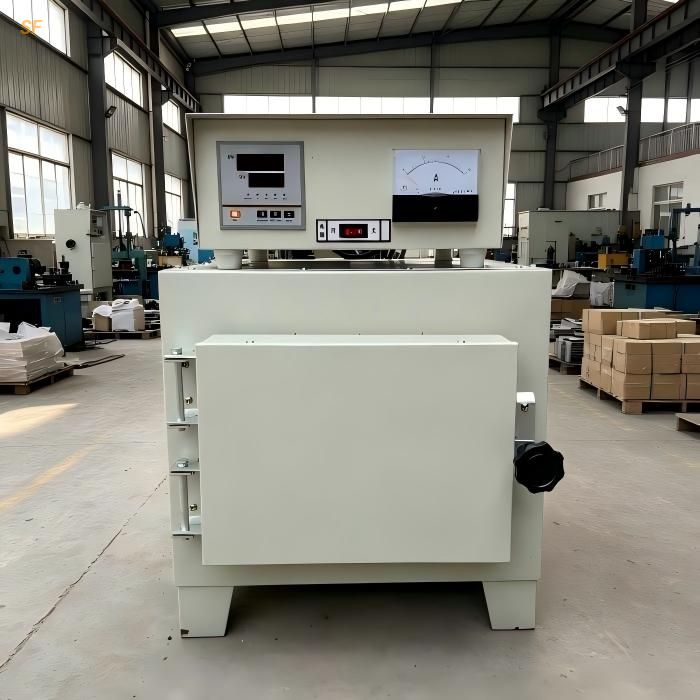

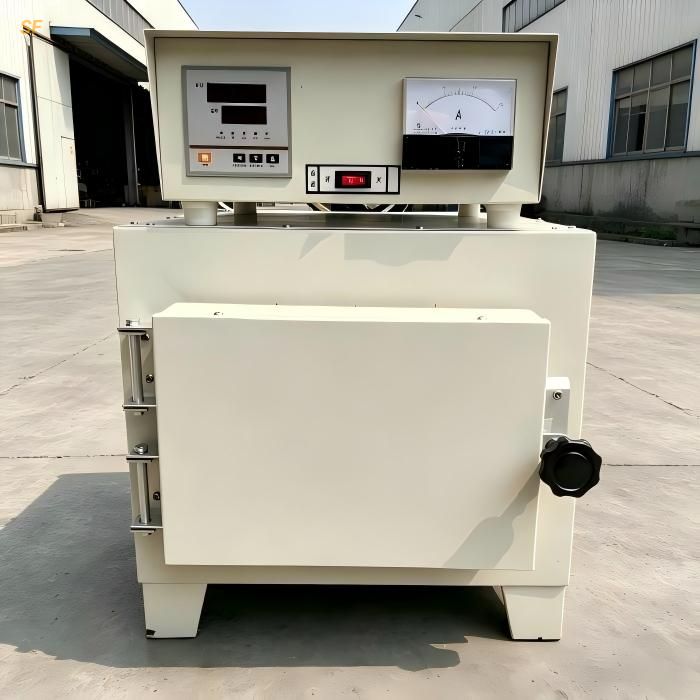

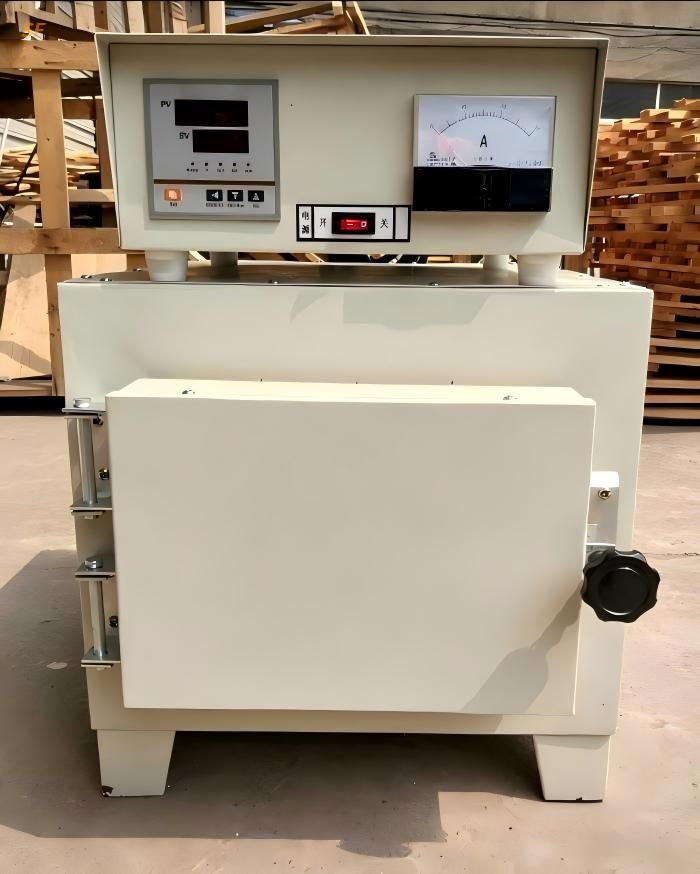

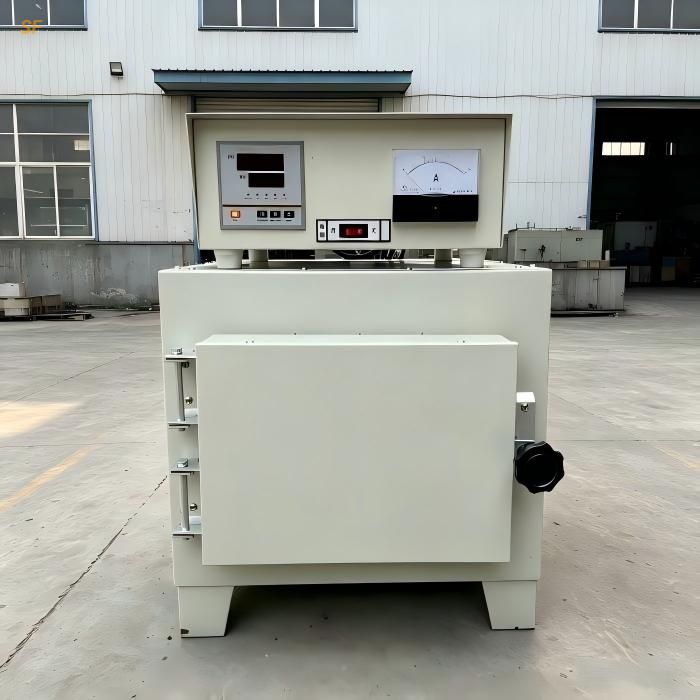

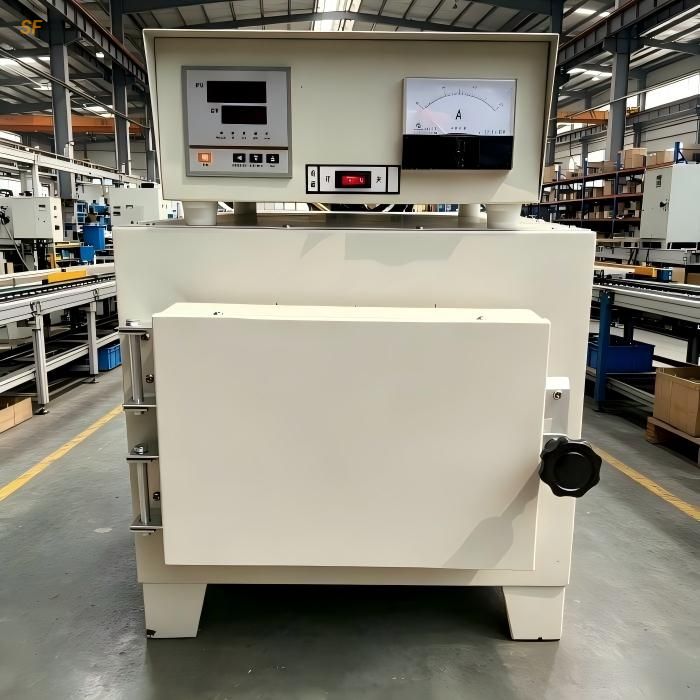

This muffle furnace (also known as box type resistance furnace or high temperature furnace) is a periodic operation electric furnace, suitable for chemical analysis, physical determination and small steel parts heat treatment in industrial and mining enterprises, scientific research institutions and laboratories. It is ideal equipment for material sintering, ash analysis and heat treatment.
Heating System: Adopts Fe-Cr-Al resistance wire heating elements for fast heating and long service life.
Temperature Control System: Intelligent temperature control system with high accuracy and easy operation. Rated temperature 1000°C, temperature accuracy ±5°C.
Structural Design: Double-layer shell design provides excellent heat insulation with low external temperature for safe operation. Chamber made of refractory material for high temperature resistance and good heat retention.
Technical Parameters: Rated power 2.5kW, rated voltage 220V/50Hz. Chamber size 200×120×80mm, chamber volume 2L. Heat-up time ≤50 min. Net weight approx. 50kg.
Mainly used in industrial and mining enterprises, research institutions, university laboratories, and more for material sintering, ash analysis, heat treatment, chemical analysis and other fields.
