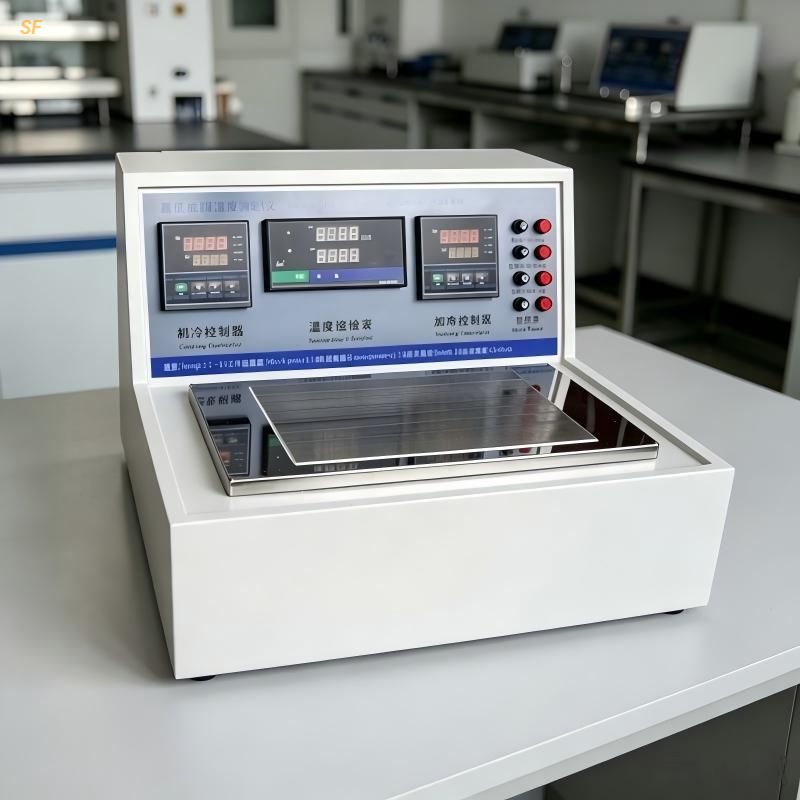

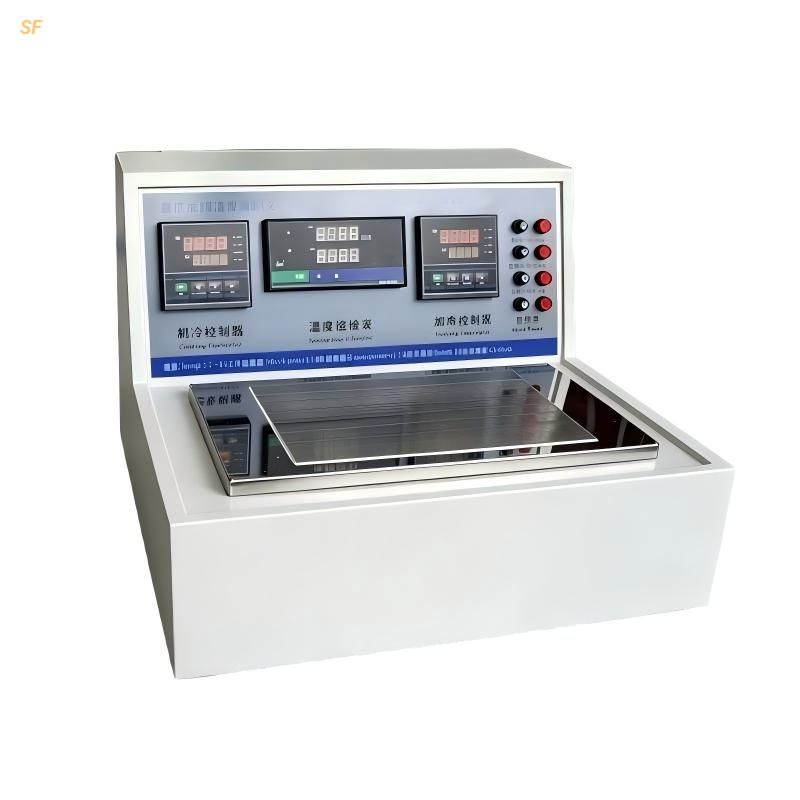

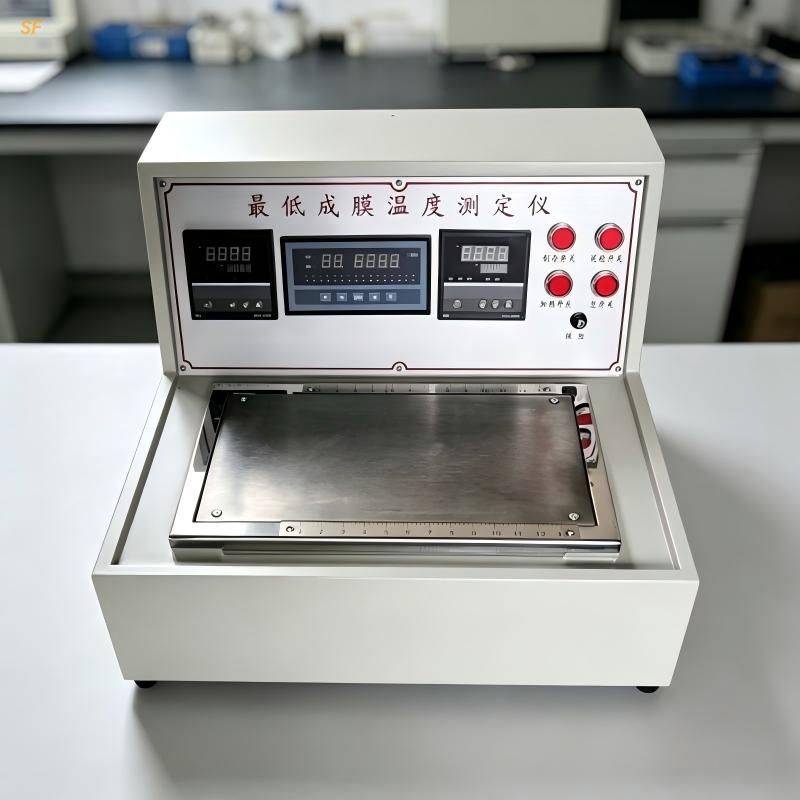

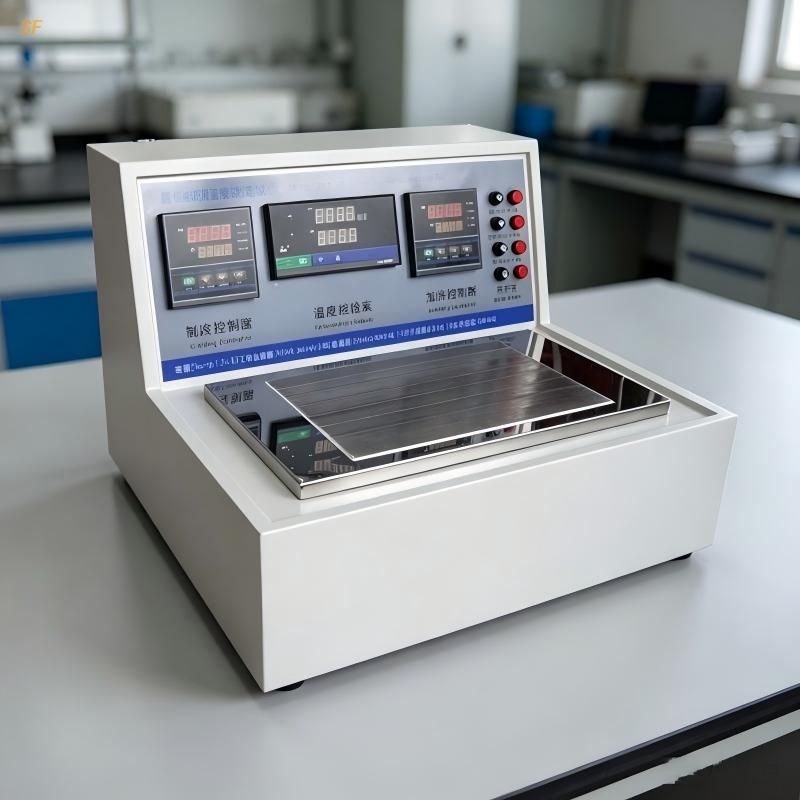

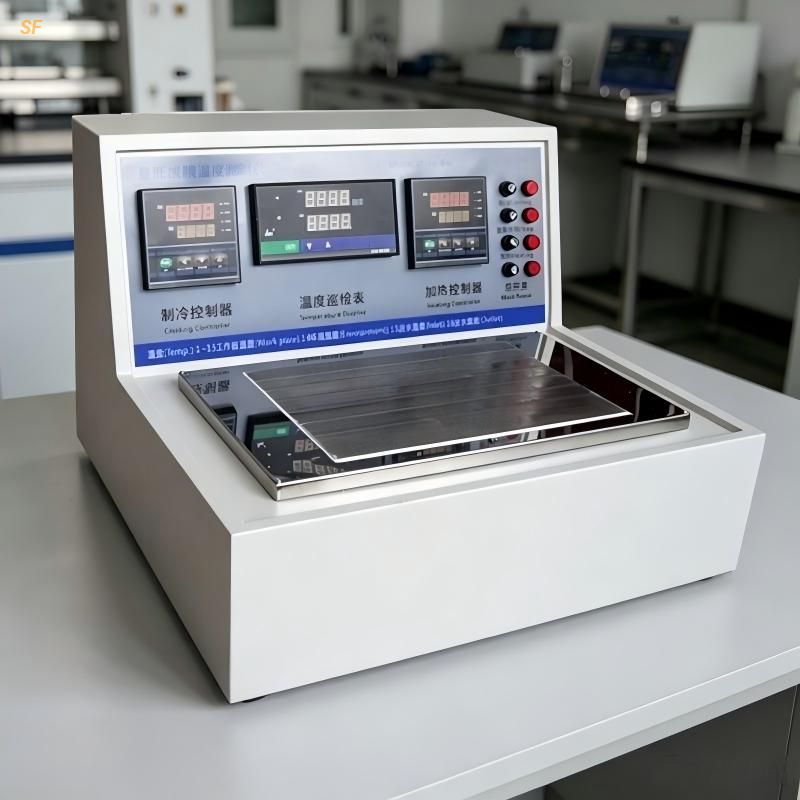

Low Film Formation Temperature Tester MFT -10~50℃

Product Features & Attributes
This low film formation temperature tester is used to determine the minimum film formation temperature (MFT) of polymer emulsions and surface treatment agents. It is ideal testing equipment for quality control in coatings, adhesives, synthetic fabrics, leather and paper industries.

Working Principle: Cooling and heating sources are set on a metal gradient plate, maintaining constant temperature points at their respective set temperatures. Through metal thermal conduction, different temperature gradients are created on the plate. The sample is evenly applied on the gradient plate and dries to form a film under the influence of the temperature gradient. Since temperatures vary across the plate, film formation differs. The temperature at the boundary between film formation and non-formation is the MFT of the sample.

Structure:

• Main unit: Metal gradient plate

• Cooling source: One set

• Heating tube: One set

• Fan: One

• Temperature controllers: Two

• Multi-channel display: One

• Temperature probes: 18 pcs

• Acrylic cover: One

• Gradient plate: One

• Sample grooves: 6 pcs (240×22×0.25mm)

• Guide tubes: Two

Technical Features:

• Temperature range -10℃~50℃ adjustable, covering common emulsion MFT ranges

• 13-point temperature detection with multi-channel digital display

• Dual temperature control (cooling + heating) for stable temperature

• 6 sample grooves for simultaneous multi-sample testing

• Easy calibration and simple operation

• Fully automatic measurement, no human error, accurate results

Technical Parameters:

• Gradient plate spacing: 20mm

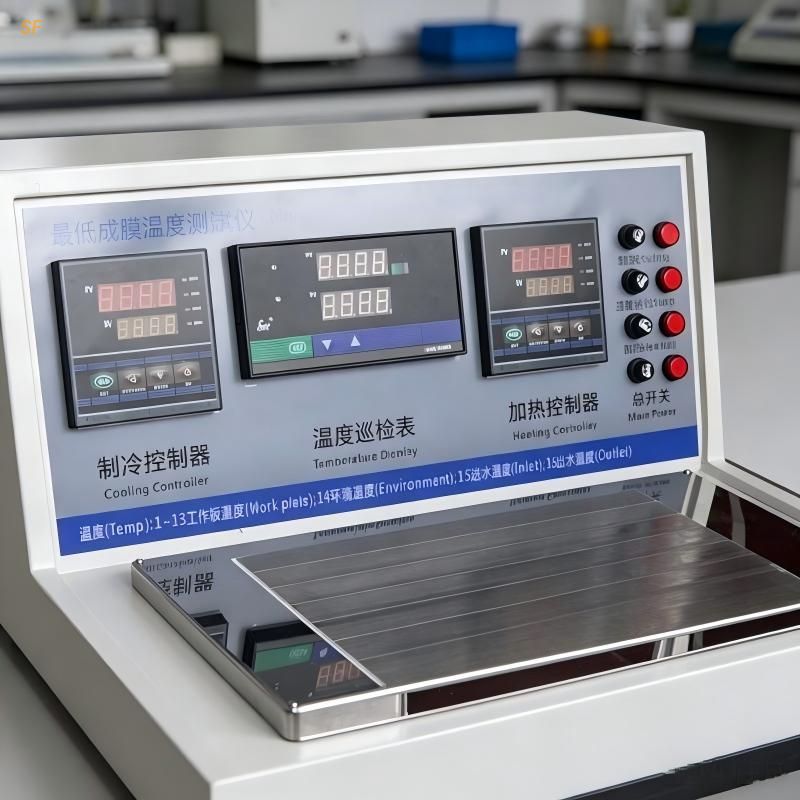

• Display channels: 16 (1-13 plate temperatures, 14 ambient, 15-16 cooling water in/out)

Applications:

• Polymer emulsions: MFT determination

• Coatings: Latex paint film formation evaluation

• Adhesives: Film formation temperature testing

• Synthetic fabrics, leather, paper surface treatments

Available in different specifications: different temperature ranges (-10~50℃, -20~60℃, etc.), different detection point quantities (13, 17, etc.), and different sample groove quantities (6, 8, etc.) to suit various polymer emulsion types and testing standards.

Mainly used in paint manufacturers, emulsion manufacturers, adhesive manufacturers, quality inspection institutions, research universities, synthetic fiber and leather processing companies, and more for MFT testing of polymer emulsions.
