SF
SF383
Product Features & Attributes

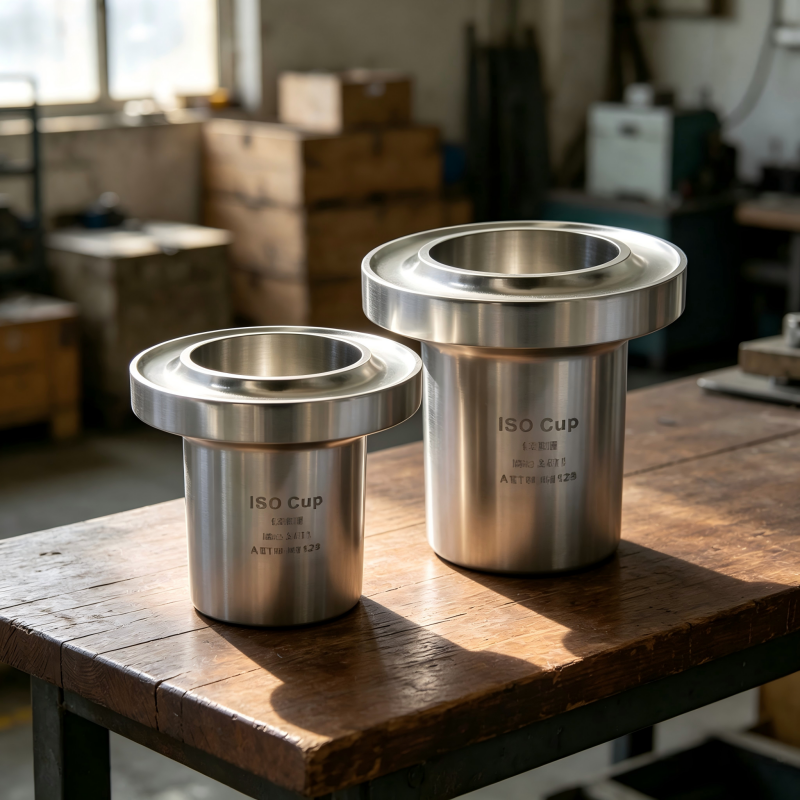

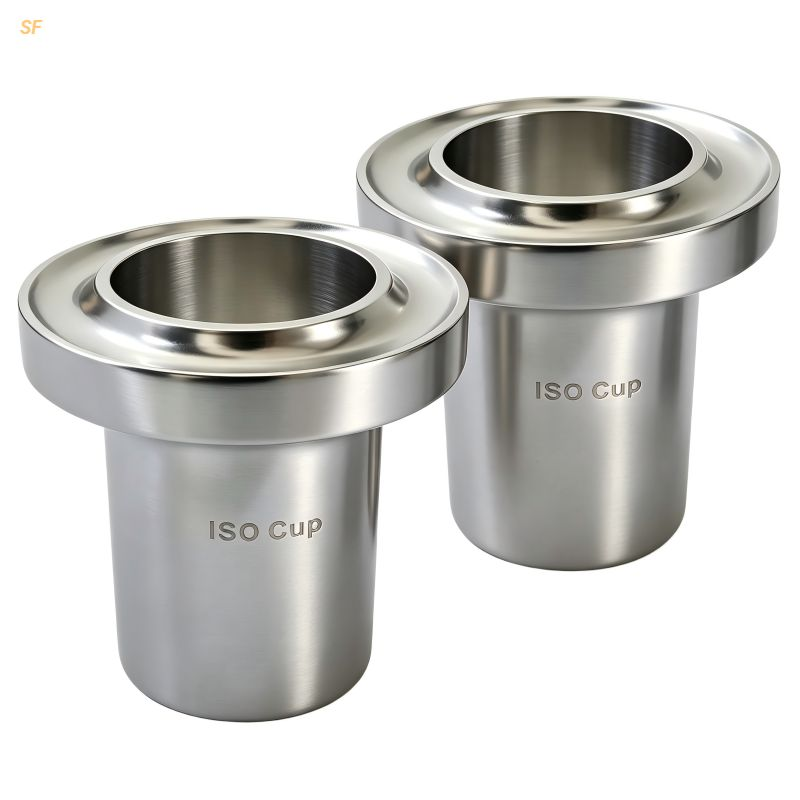

This ISO flow cup (viscosity cup) is used to determine the flow time of Newtonian or near-Newtonian liquids, widely applied in rapid viscosity testing and quality control in paints, coatings, varnishes, inks and other industries.
Working Principle: A fixed volume (108ml) of test liquid at specified temperature is poured into the cup. The time (seconds) for the liquid to completely flow through the standard orifice is measured, and kinematic viscosity (mm²/s) is calculated by formula.
Five Orifice Sizes Available:
Cup No. | Orifice | Measuring Range | K Value | C Value |
|---|---|---|---|---|
ISO-3 | 3mm | 7~42 mm²/s | 0.443 | 200 |
ISO-4 | 4mm | 35~135 mm²/s | 1.37 | 200 |
ISO-5 | 5mm | 91~326 mm²/s | 3.28 | 220 |
ISO-6 | 6mm | 188~684 mm²/s | 6.90 | 570 |
ISO-8 | 8mm | 600~2000 mm²/s | Custom | Custom |
Calculation Formulas:
ISO-3: ν = 0.443t - 200/t
ISO-4: ν = 1.37t - 200/t
ISO-5: ν = 3.28t - 220/t
ISO-6: ν = 6.90t - 570/t
Standard Configuration:

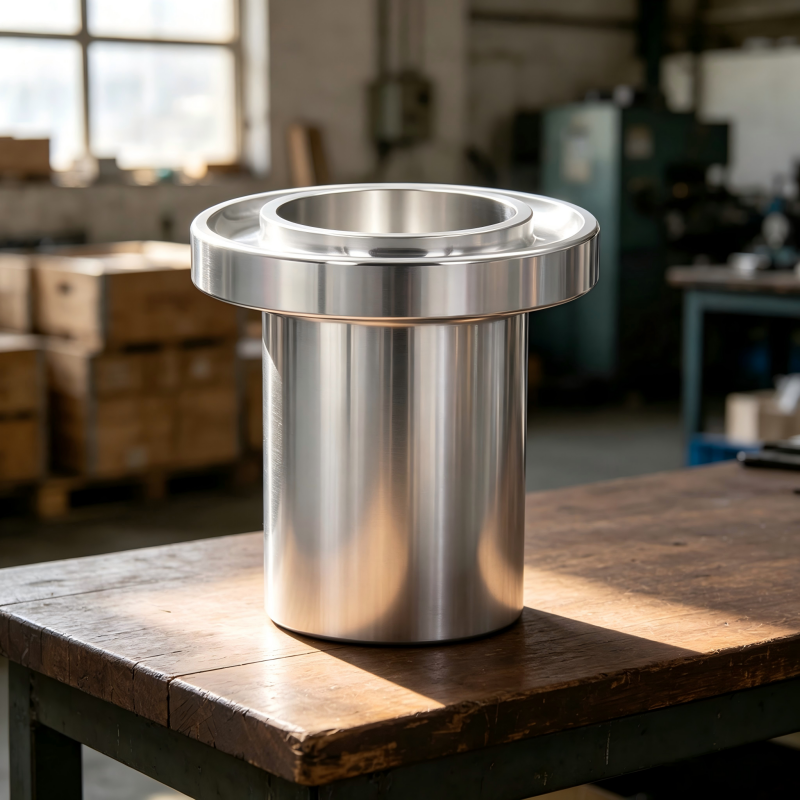

ISO flow cup body (anodized aluminum cup + stainless steel orifice)
User manual
Packing box
Optional Accessories:
Dedicated stand
Stopwatch (0.1s accuracy)
Technical Features:
Anodized aluminum cup body, corrosion-resistant, lightweight and durable

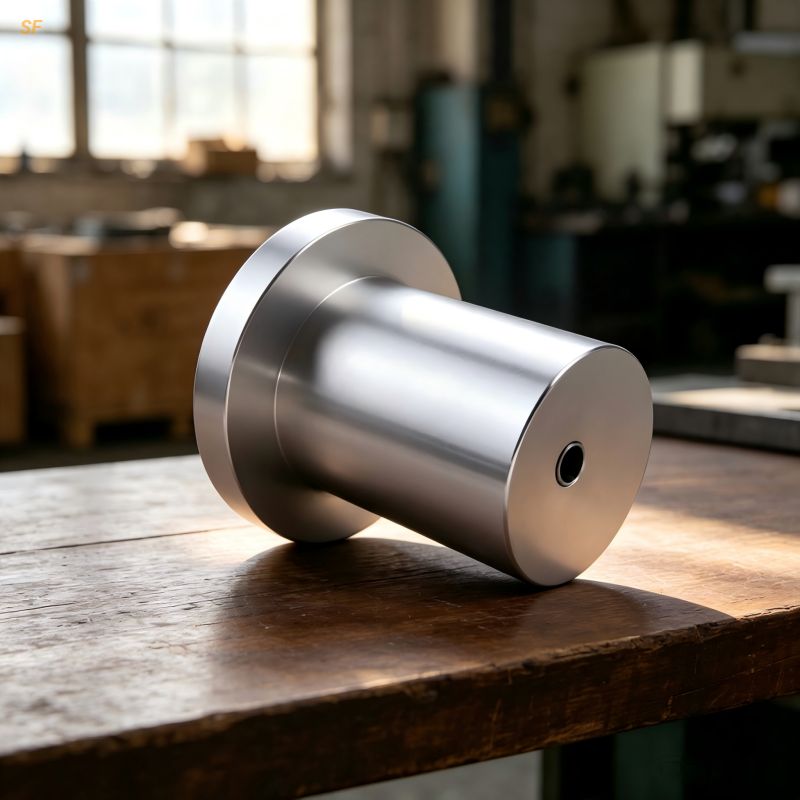

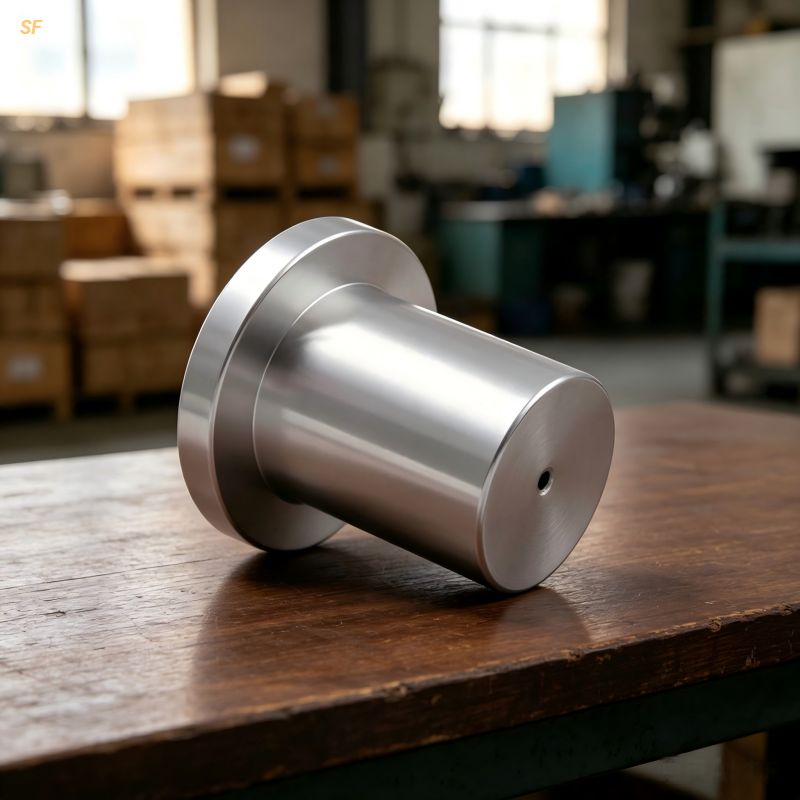

Stainless steel fixed orifice, precision machined for stable flow
Five orifice sizes for wide viscosity range coverage
Conforms to international standard test method
Simple structure, easy operation and cleaning
Operation Steps:
Clean cup interior with fine gauze and soft paper through orifice

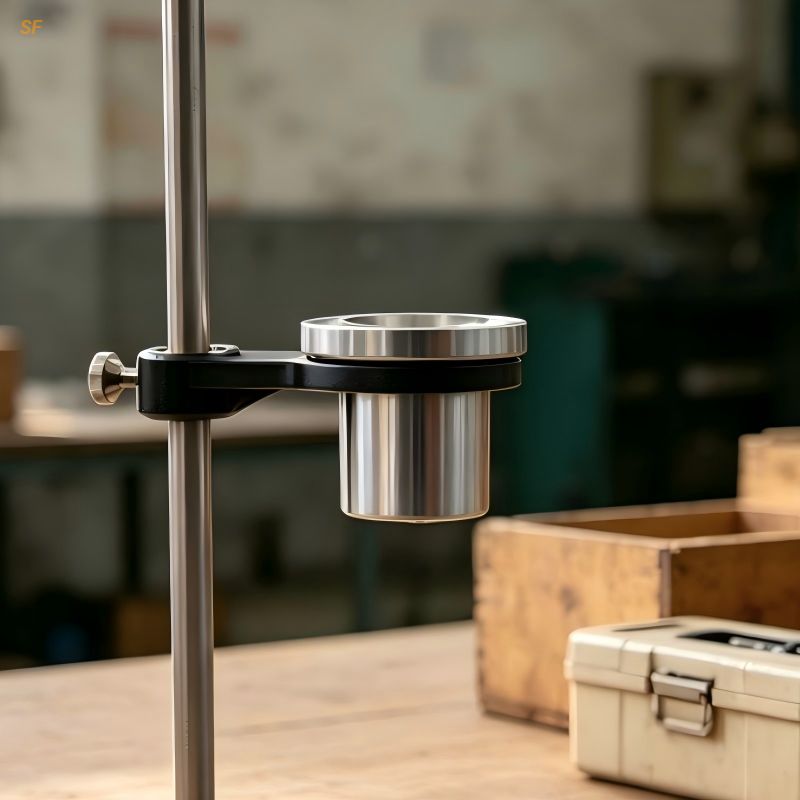

Place cup on stand, adjust level
Hold finger over orifice, pour temperature-controlled liquid to full
Level the surface, simultaneously start stopwatch and release orifice
Stop timing when flow breaks, record flow time
Average multiple measurements, calculate viscosity by formula
Available in five orifice sizes from ISO-3 to ISO-8 to suit different viscosity ranges. Stand and stopwatch available as optional accessories.
Mainly used in paint manufacturers, coating companies, ink manufacturers, quality inspection institutions, research universities, and more for rapid kinematic viscosity testing.
