Emulsified Asphalt Demulsibility Test Mixer Emulsified Asphalt and Aggregate Mixing Tester Stepless Speed Control for Demulsibility Performance & Mixing Effect Evaluation Factory Direct

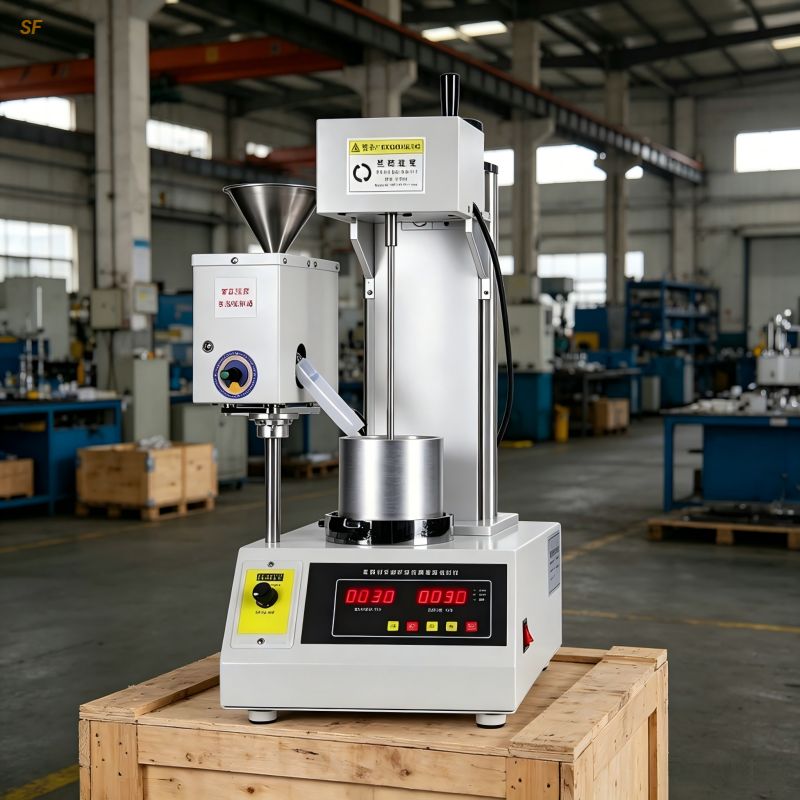

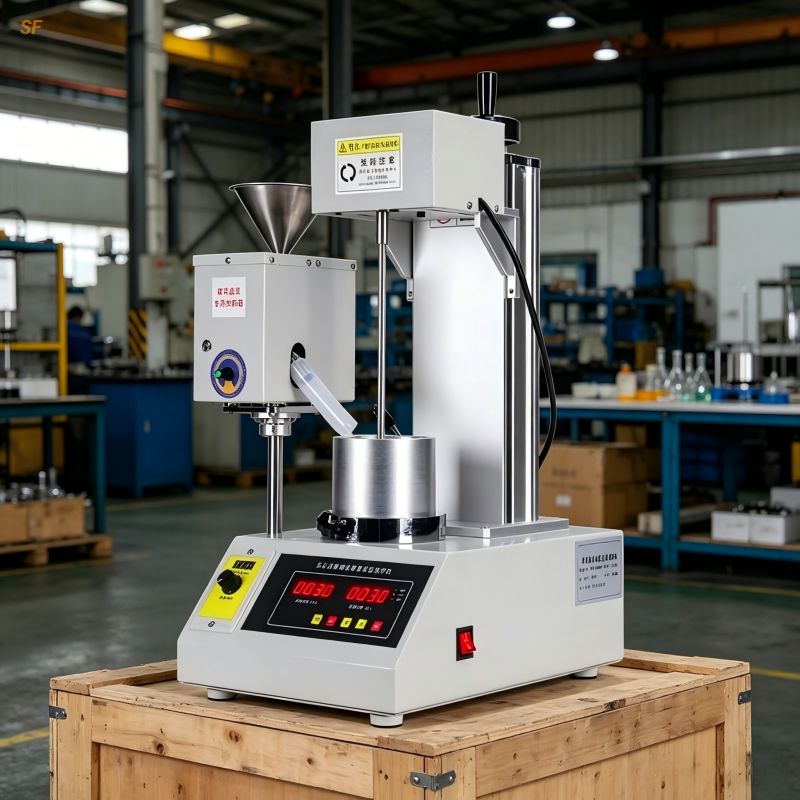

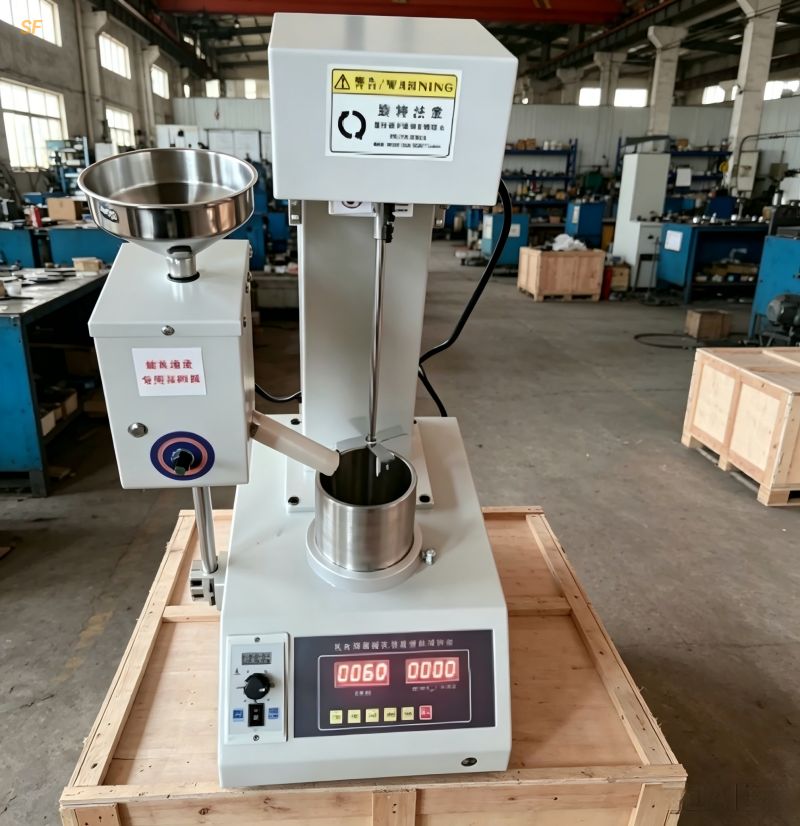

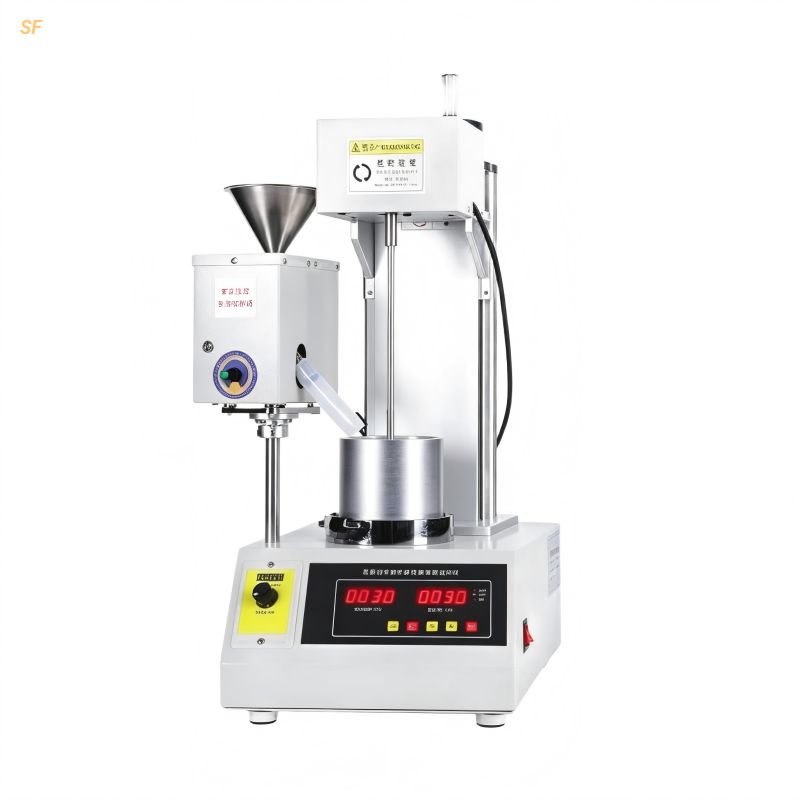

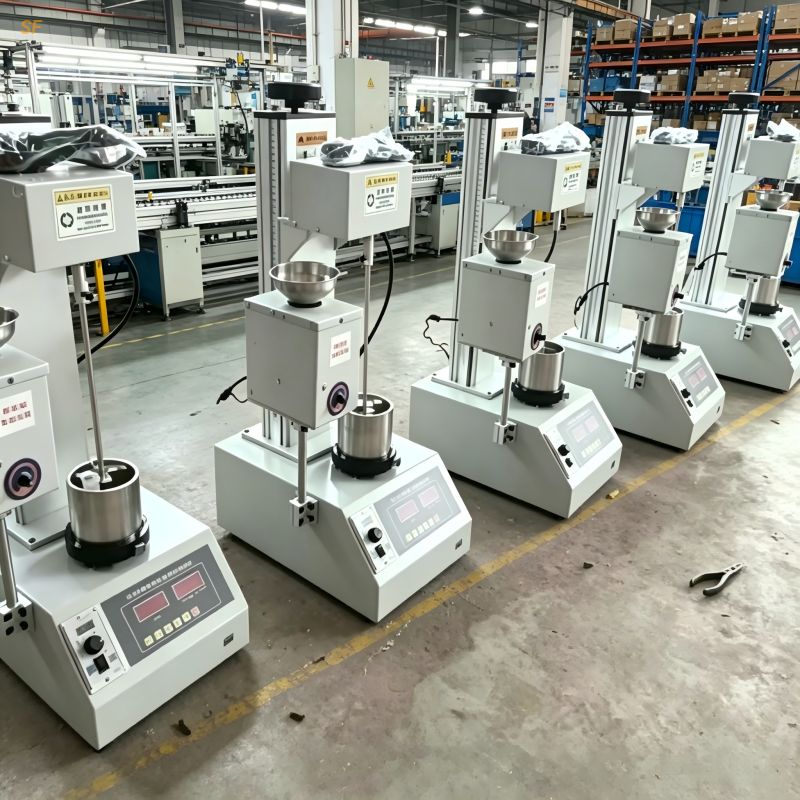

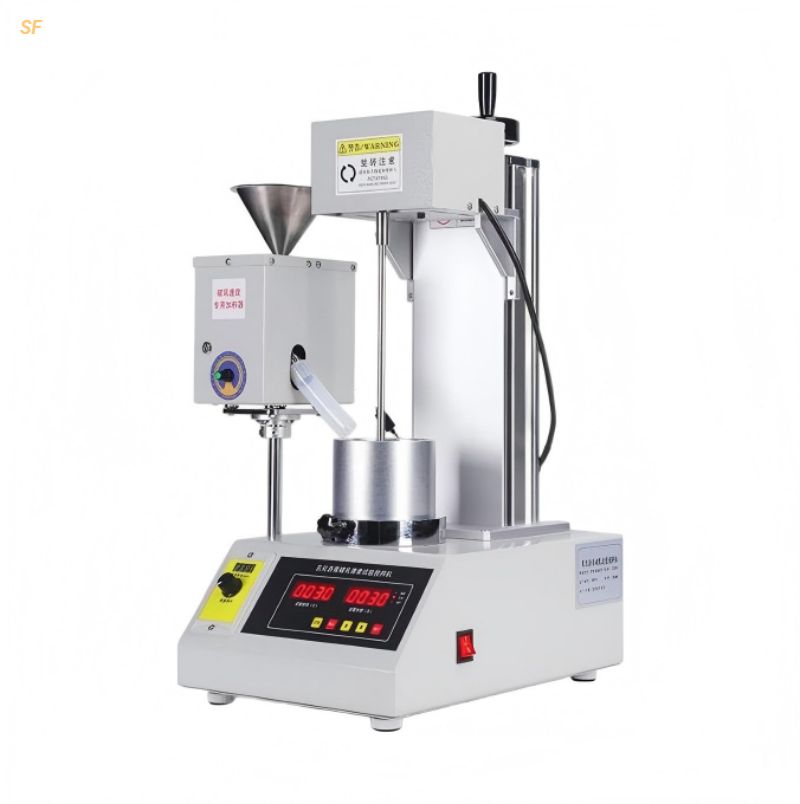

This emulsified asphalt demulsibility test mixer (also known as emulsified asphalt and aggregate mixing tester) is specifically designed for emulsified asphalt demulsibility testing. Under 25℃±1℃ conditions, aggregates and emulsion are mixed according to specified gradation to evaluate demulsibility performance and mixing effect through observation of mixing state and uniformity. It is essential testing equipment for asphalt mixture mix design and emulsified asphalt quality control.

Test Principle: At specified temperature, aggregates are added to emulsified asphalt at a set feed rate. The motor drives the mixing paddle to rotate at a constant speed, allowing thorough mixing of aggregates and emulsified asphalt. The demulsibility speed is evaluated by observing the mixture's state, uniformity, and demulsification condition.

Technical Features:

• Stepless Speed Control: Speed range 60~260 r/min, adjustable for different emulsified asphalt types

• Adjustable Feed Rate: Feed rate 0.35±0.10 g/s, simulating actual construction mixing process

• Constant Temperature Control: Test temperature 25±1℃, ensuring consistent testing conditions

• Mixing Bowl Volume: 600ml, meeting standard test volume requirements

• Easy Operation: Motor-driven for uniform mixing and reliable results

Technical Parameters: Power supply 220V/50-60Hz, power 300W. Overall dimension approx. 300×300×500mm, net weight approx. 12-15kg.

Mainly used in highway engineering laboratories, asphalt mixture testing institutions, emulsified asphalt manufacturers, research universities, and more for determining emulsified asphalt demulsibility speed and evaluating mixing effect with aggregates.
