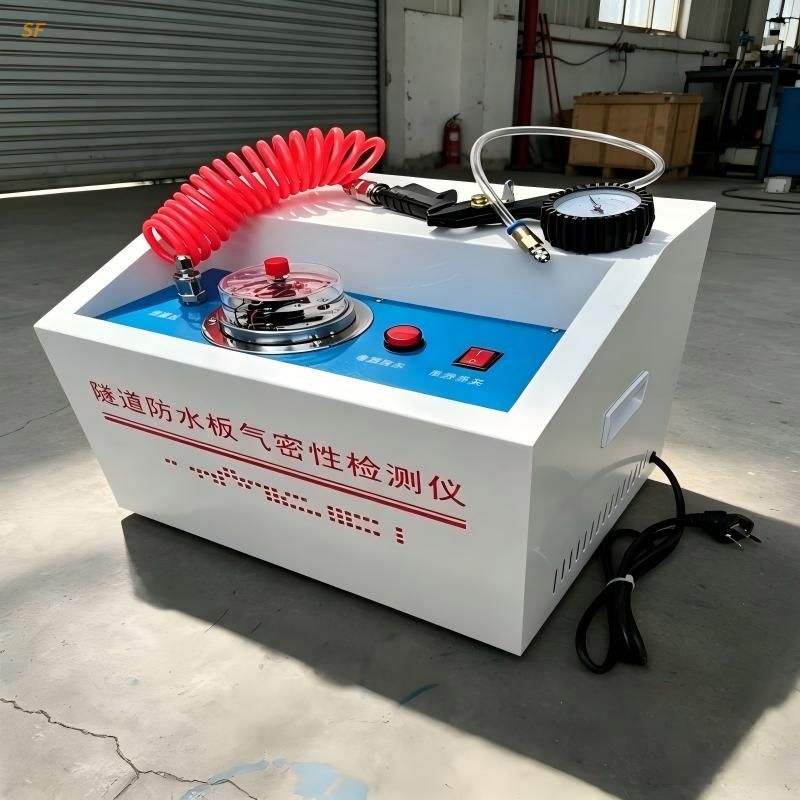

Electric Waterproof Board Seam Leak Tester Tunnel Waterproofing 0.25MPa

Product Features & Attributes
This electric waterproof board seam leak tester is used for air tightness testing of welded seams on tunnel waterproofing boards. It is essential equipment for waterproofing quality testing in tunnel construction.

Working Principle: Insert the injection needle into the seam to be tested, connect power and start the air pump to inflate the seam. When the pressure gauge reaches the preset working pressure (0.25MPa), the instrument automatically stops inflating and maintains constant pressure. After 15 minutes, observe the pressure drop. A drop within 10% indicates a qualified seam. If the pressure drops too quickly, apply soapy water to locate and repair leaks.

Technical Features:

• Air pump as air source for rapid inflation

• 0.25MPa automatic constant pressure (factory preset)

• Automatic stop when pressure is reached for easy operation

• Improves work efficiency, reduces labor intensity

• Compact and portable for tunnel construction site use

Technical Parameters:

• Overall dimension: 450×280×300mm

• Packing dimension: 570×380×400mm

• Total weight: 15kg

Test Method:

1. Insert needle into the seam to be tested

2. Connect power, turn on switch to start inflation

3. Automatic stop when pressure reaches 0.25MPa

4. Hold for 15 minutes, observe pressure change

5. Pressure drop ≤10%: qualified; faster drop: check with soapy water

Available in different specifications: different working pressures (0.2MPa, 0.25MPa, 0.3MPa, etc.), different inflation speeds, and different pressure holding time settings to suit various waterproofing materials and testing standards.

Mainly used in tunnel construction companies, waterproofing board manufacturers, railway and highway engineering quality inspection institutions, and more for on-site air tightness testing of waterproofing board seams.
