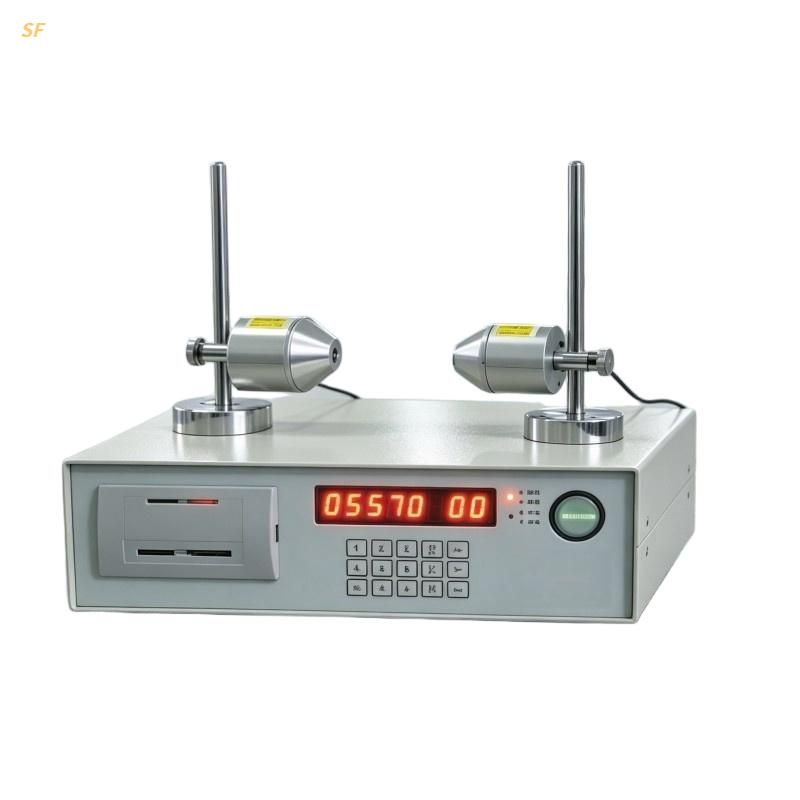

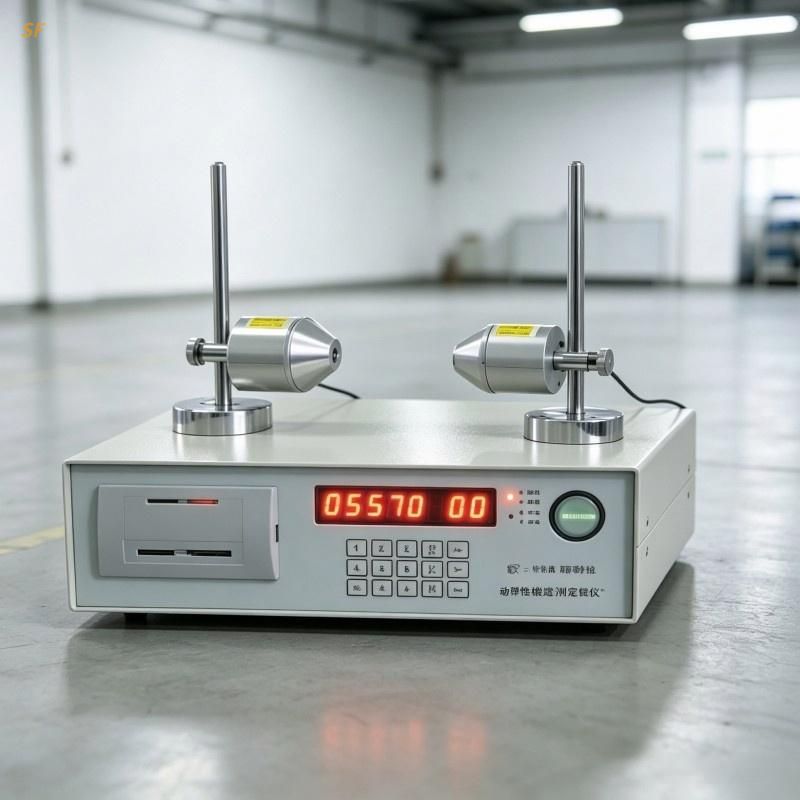

Dynamic Elastic Modulus Tester Concrete 100Hz-10kHz 0-15W

Product Features & Attributes
This dynamic elastic modulus tester is used to determine the resonance frequency of concrete, acrylic mortar, carbon and other materials under specific vibration modes, calculating the dynamic elastic modulus. It can be used with freeze-thaw test chambers to evaluate concrete damage during freeze-thaw cycles or chemical erosion. Also suitable for dynamic elastic modulus measurement of carbon, stone, brick, glass, plastics, steel, copper, aluminum and other non-metallic and metallic materials. It is important testing equipment for quality supervision and inspection stations, research institutes and universities in metallurgy, construction, highway, railway, bridge, water conservancy and power industries.

Working Principle: Transmit vibration signals at specific frequencies to excite specimen resonance, capture and analyze the resonance frequency, and calculate dynamic elastic modulus based on material density and specimen dimensions. Changes in resonance frequency reflect the degree of internal structural damage.

Technical Features:

• Frequency range 100Hz~10kHz covering multiple material resonance frequencies

• Measurement error <3% for accurate and reliable data

• Sensitivity 1mV for precise signal capture

• Output power 0~15W continuously adjustable for different specimens

• Three output methods: digital display, oscilloscope display, printer print

• Wide application covering both metallic and non-metallic materials

• Compatible with freeze-thaw chambers for durability evaluation

Applicable Specimens:

• Elastic modulus mold: 150×150×300mm

• Flexural strength mold: 100×100×400mm

• Other standard specimens (refer to relevant test standards)

Applicable Materials:

• Concrete, acrylic mortar

• Carbon, stone, brick, glass

• Plastics, steel, copper, aluminum and other metallic/non-metallic materials

Applications:

• Metallurgy, construction, highway, railway, bridge

• Water conservancy and power engineering

• Quality supervision and inspection stations

• Research institutes and universities

Available in different specifications: different frequency ranges (10kHz, 20kHz, etc.), different output methods (digital display/oscilloscope/printer/PC communication) to suit various material testing needs and user requirements.

Mainly used in engineering quality testing institutions, research universities, concrete product manufacturers, building material laboratories, and more.
