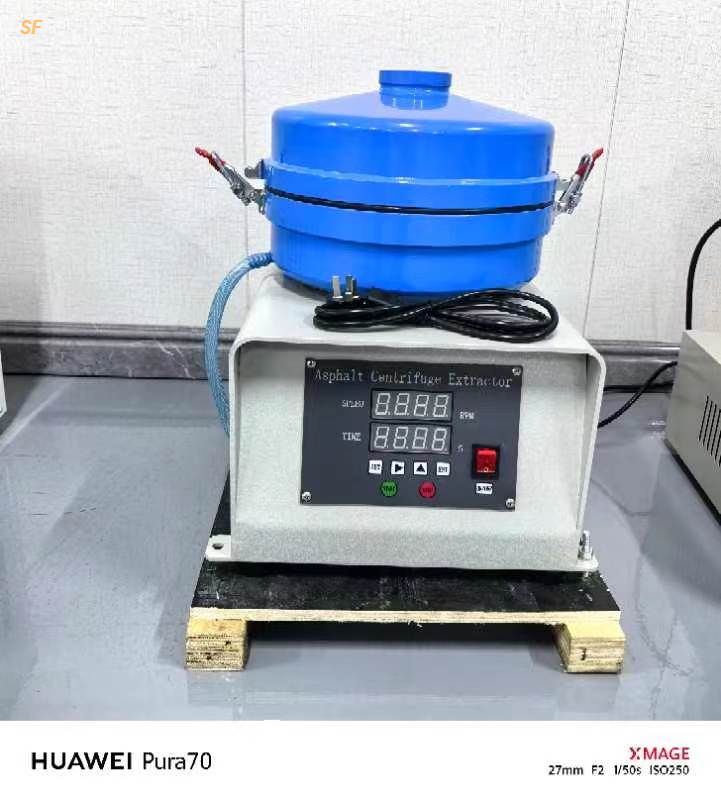

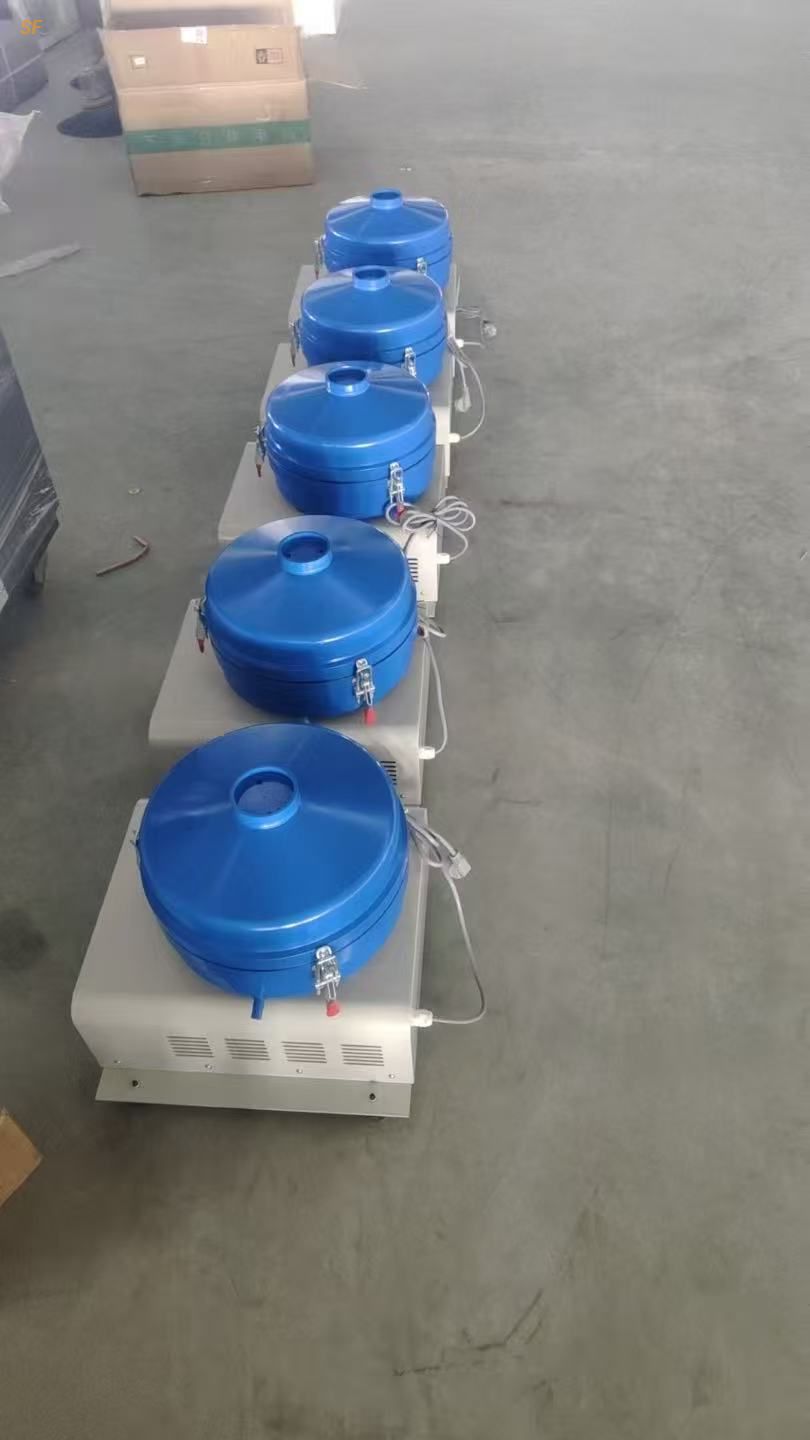

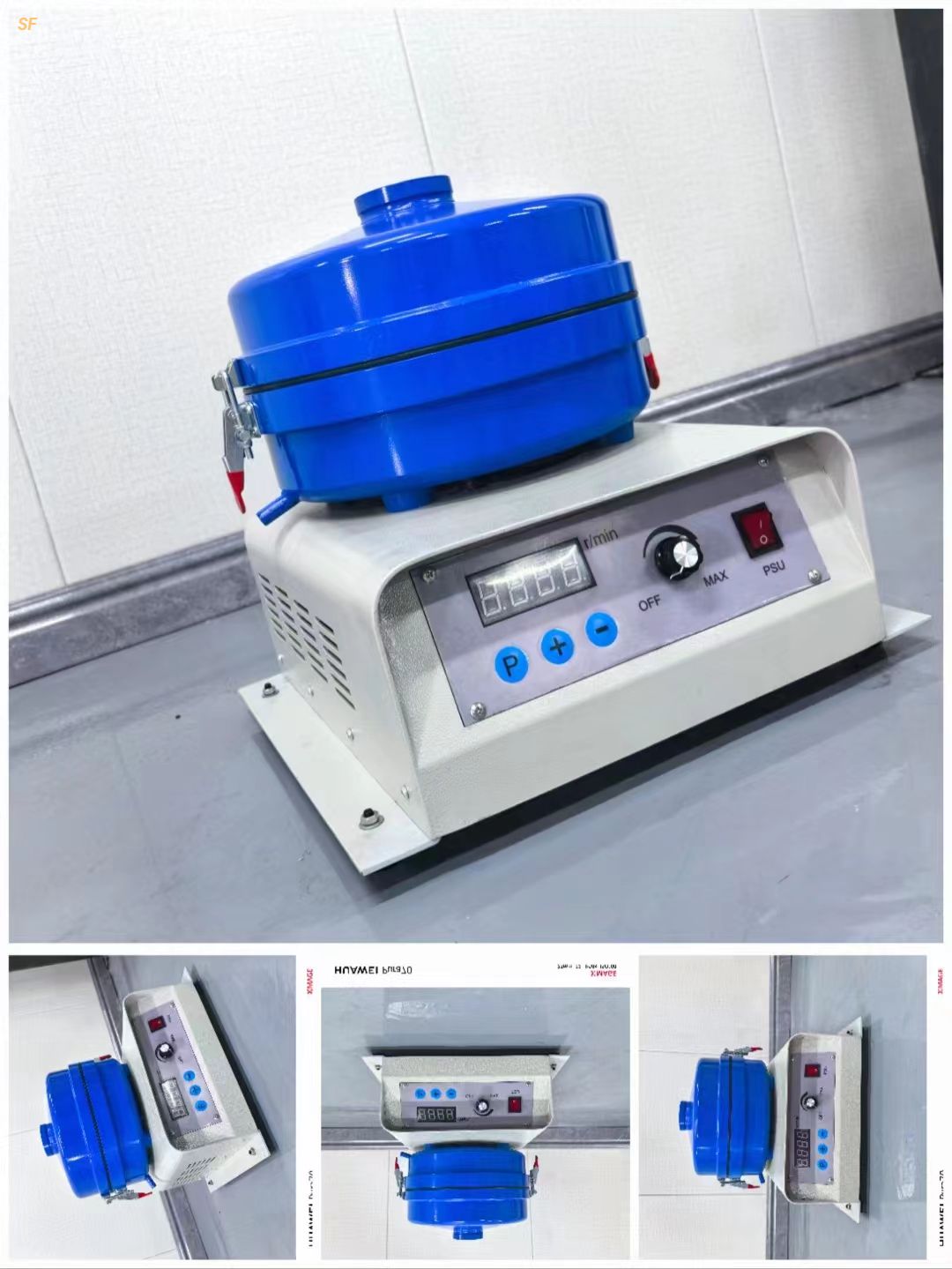

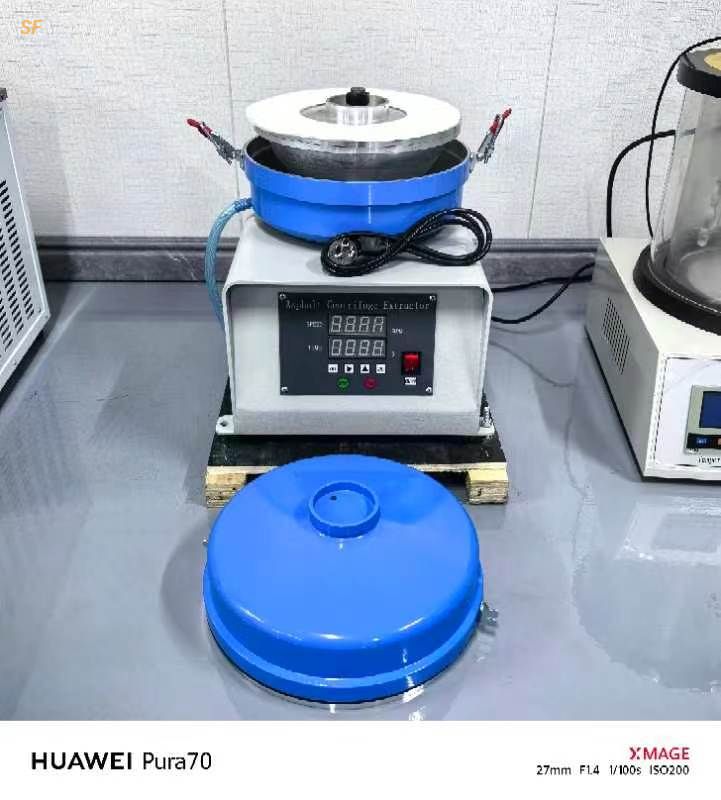

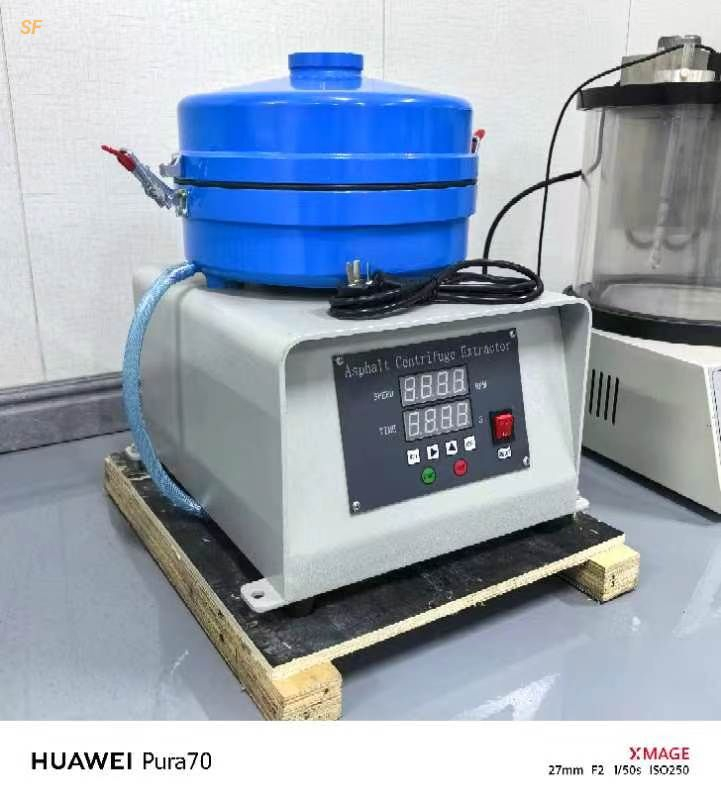

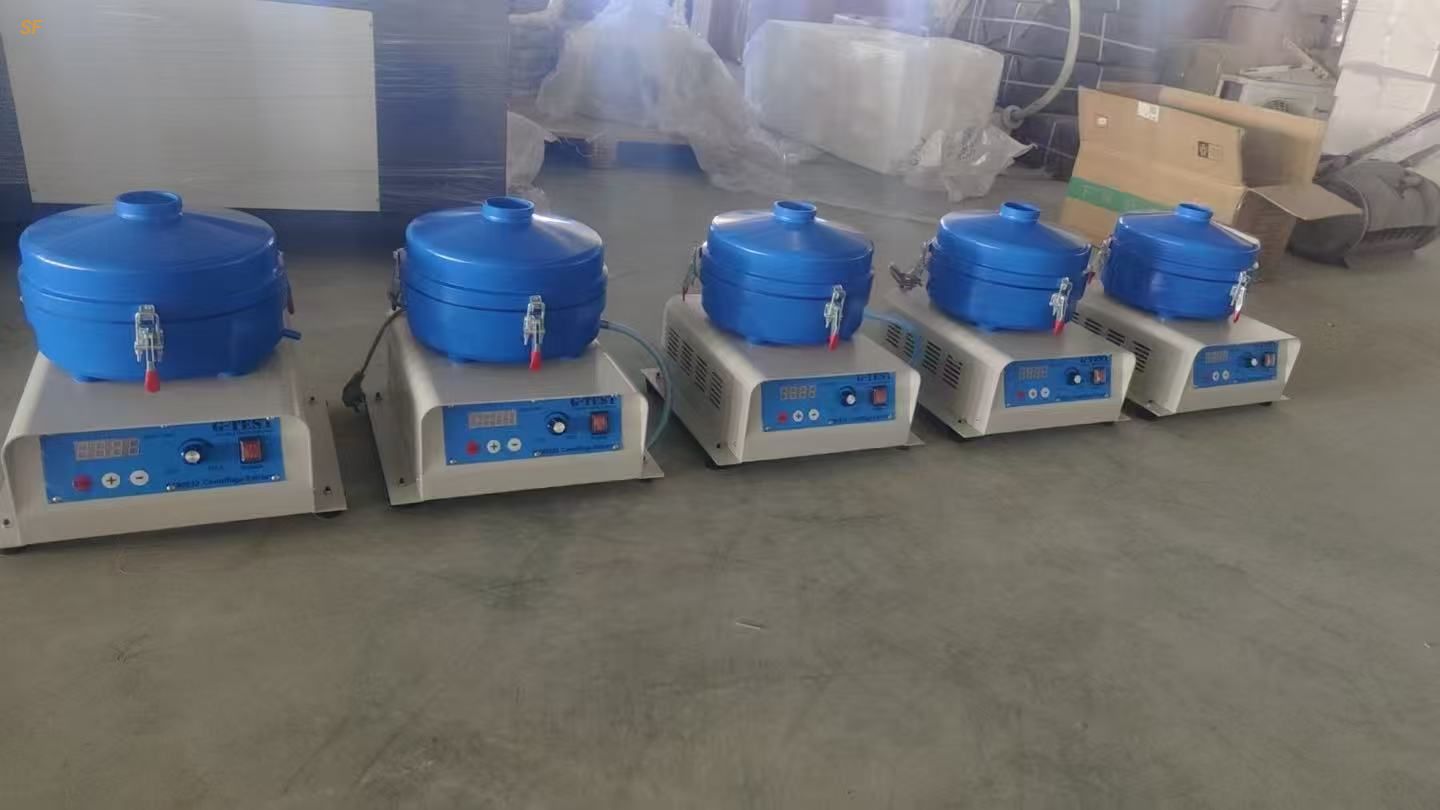

The equipment adopts a 304/316L stainless steel sealed chamber with excellent solvent corrosion resistance and sealing performance, effectively preventing the volatilization of toxic solvents and ensuring the safety of operators. It is equipped with a high-precision servo motor drive system with stepless adjustable centrifugal speed (5000–11000 r/min), stable loading, precise separation, and extraction accuracy ≤0.1%. The intelligent touch screen supports one-click start of the automatic process, including solvent spraying, high-speed centrifugation, vibration screening, solvent condensation recovery, and aggregate drying. The closed-loop operation eliminates sample transfer loss and greatly improves testing efficiency. The equipment integrates safety devices such as overload protection, safety lock, and automatic shutdown. The flip-top design facilitates sample loading/unloading and equipment cleaning. The bottom flow collection tank ensures thorough solution collection and reduces solvent waste.
Core Parameters: Single sample capacity 3.5kg; centrifugal speed 5000–11000 r/min; extraction accuracy ≤0.1%; single test time 20–40 minutes; voltage supports 110V/220V, 50/60Hz; compatible solvents: tetrachloroethylene, trichloroethylene, methylene chloride.
