SF
SF261

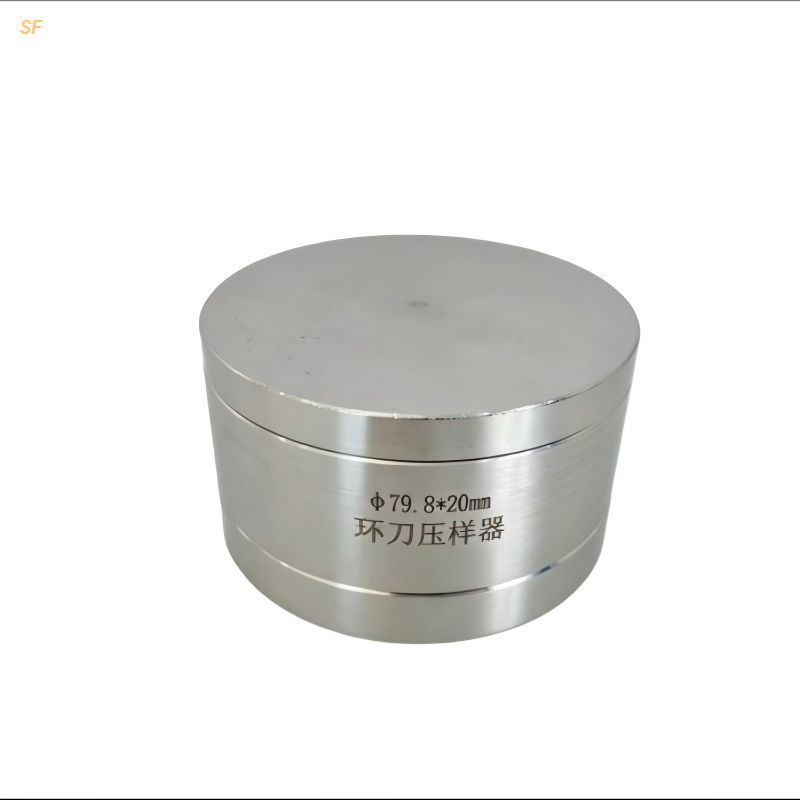

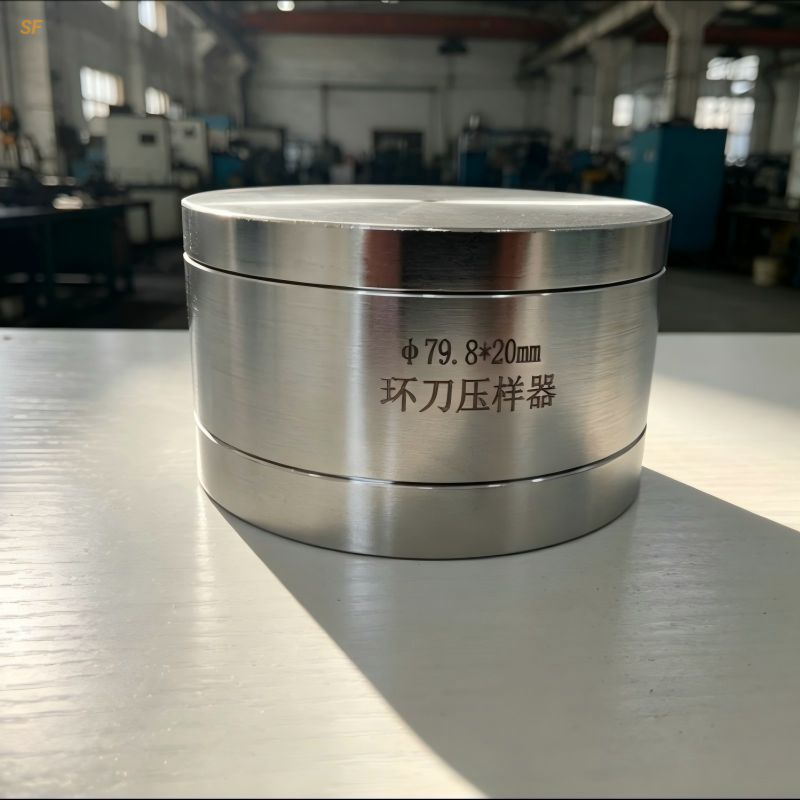

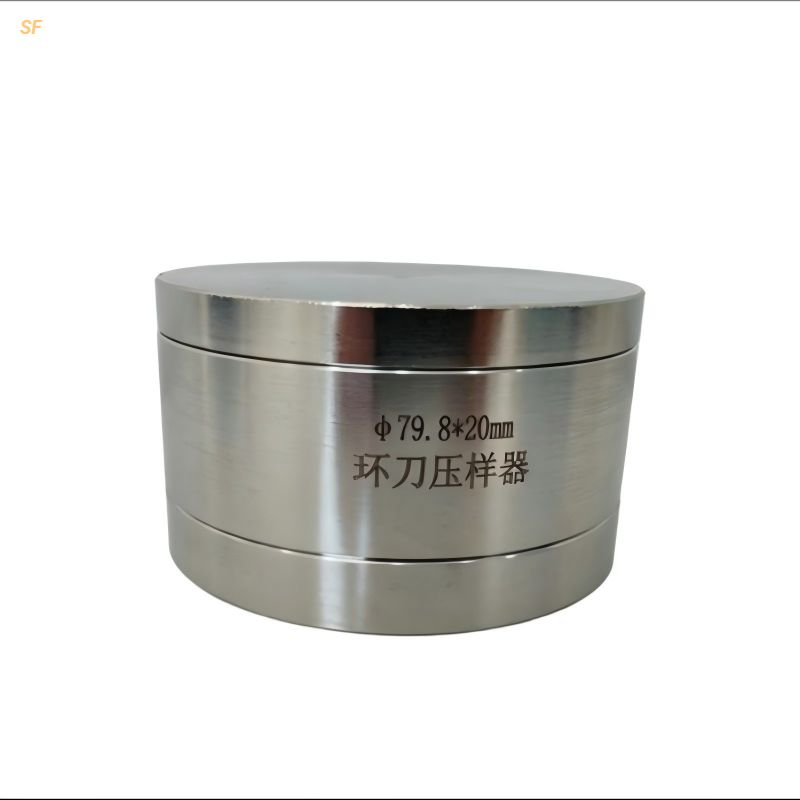

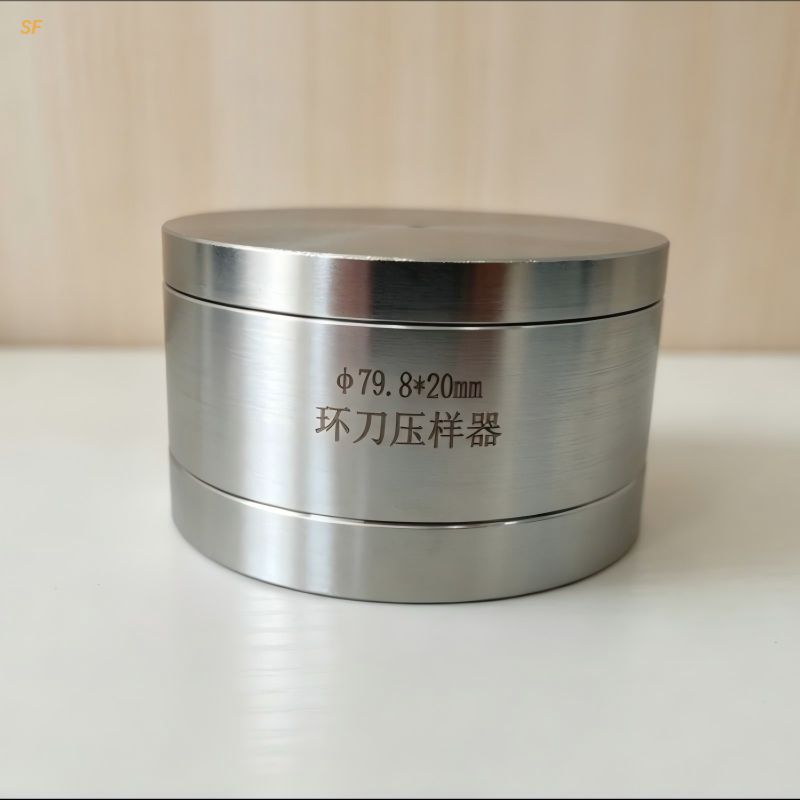

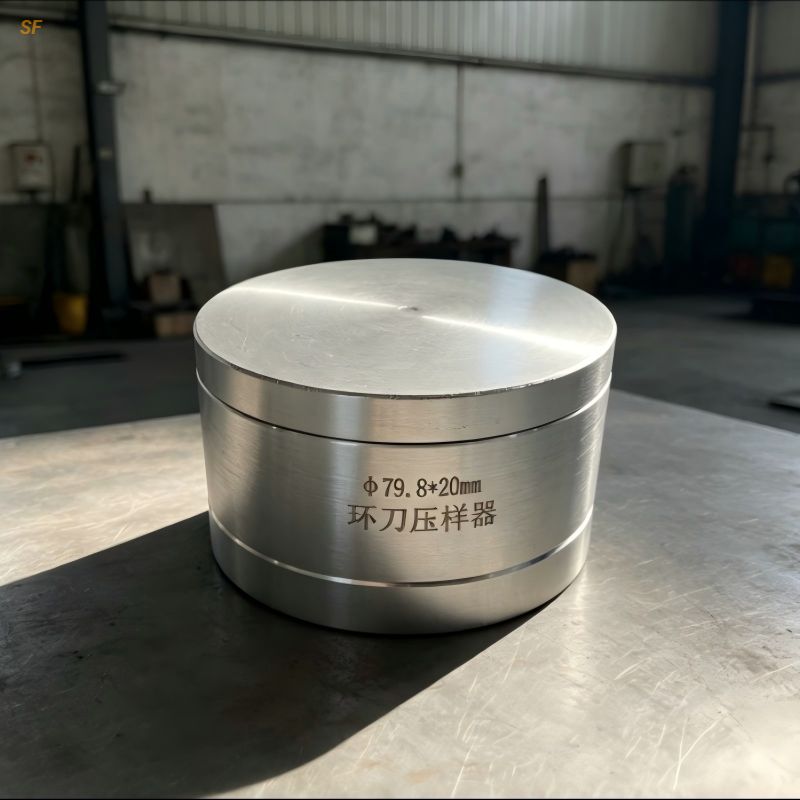

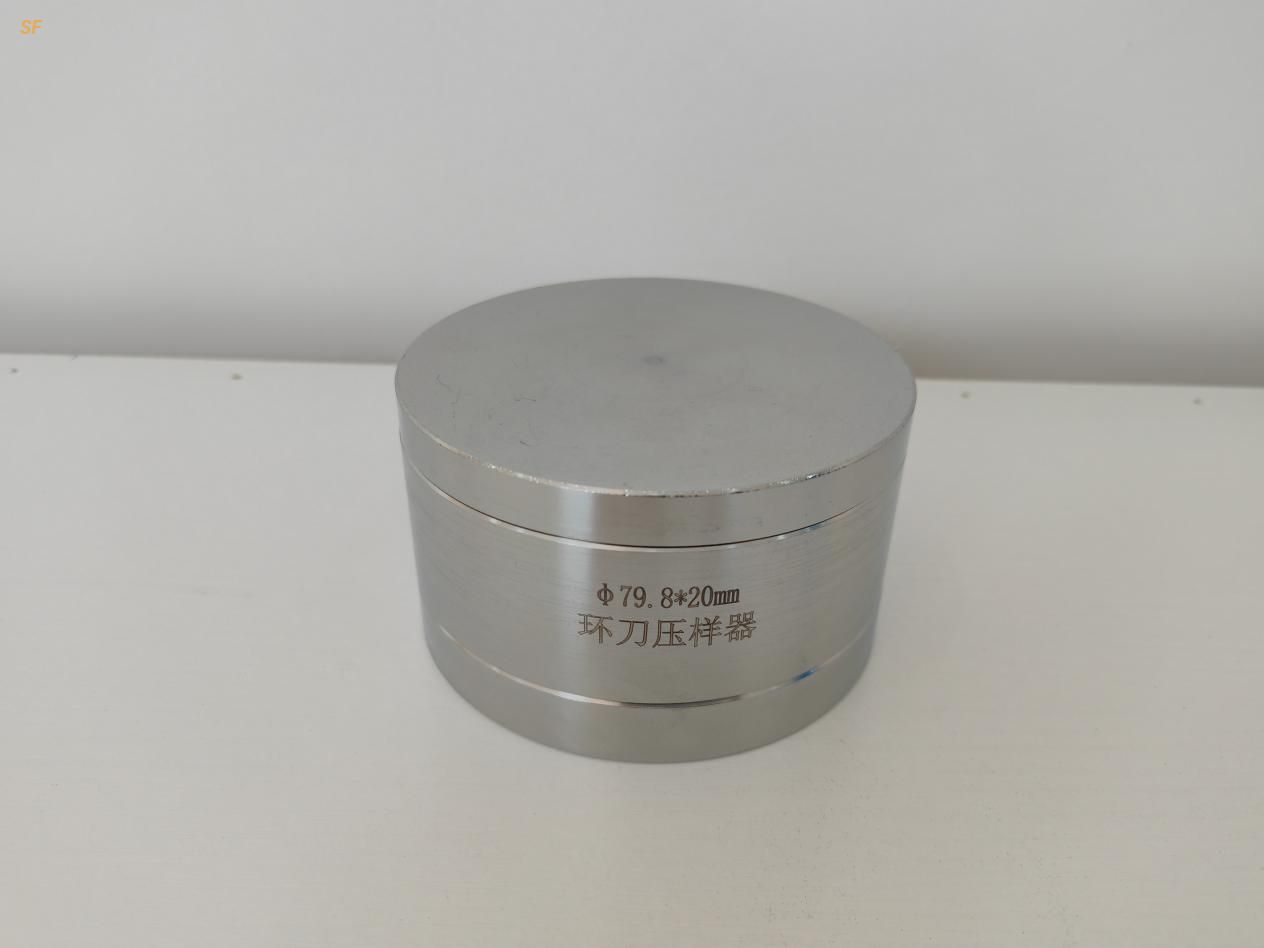

This core cutter sample compactor (also known as soil sample compactor or geotechnical test accessory) is a special accessory for soil tests, used for core sample compaction and soil sampling molding to meet geotechnical test pretreatment requirements.
Structure: Consists of three parts: top cover, barrel, and base. Compact structure for easy assembly and disassembly.
Material & Finish: Precisely machined from 304 stainless steel with brushed finish. Features corrosion resistance, high strength, and durability. Easy to operate with accurate dimensions.
Technical Parameters: Matched core cutter inner diameter 79.8mm, matched core cutter height 20mm, overall outer diameter 92mm, overall height 45mm, net weight 0.85kg.
Available in different specifications: different matched core cutter inner diameters (e.g., 61.8mm, 79.8mm, 100mm, etc.) and different overall heights (e.g., 35mm, 45mm, 60mm, etc.) to meet various core cutter sizes and different soil testing requirements.
Mainly used in soil laboratories, geological survey institutions, and engineering testing units for undisturbed and disturbed soil sample compaction and core cutter sampling molding.
