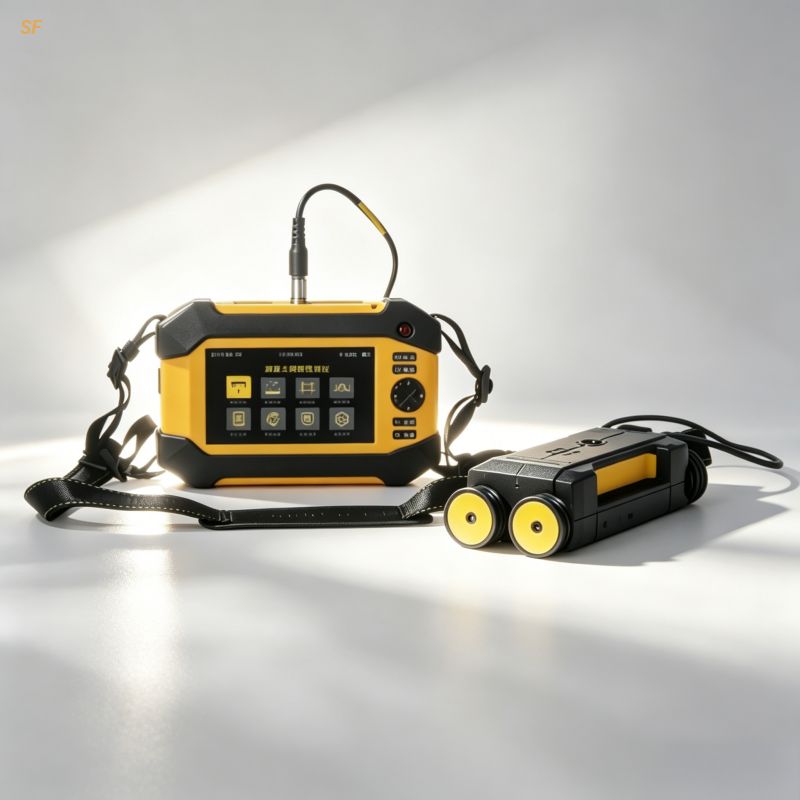

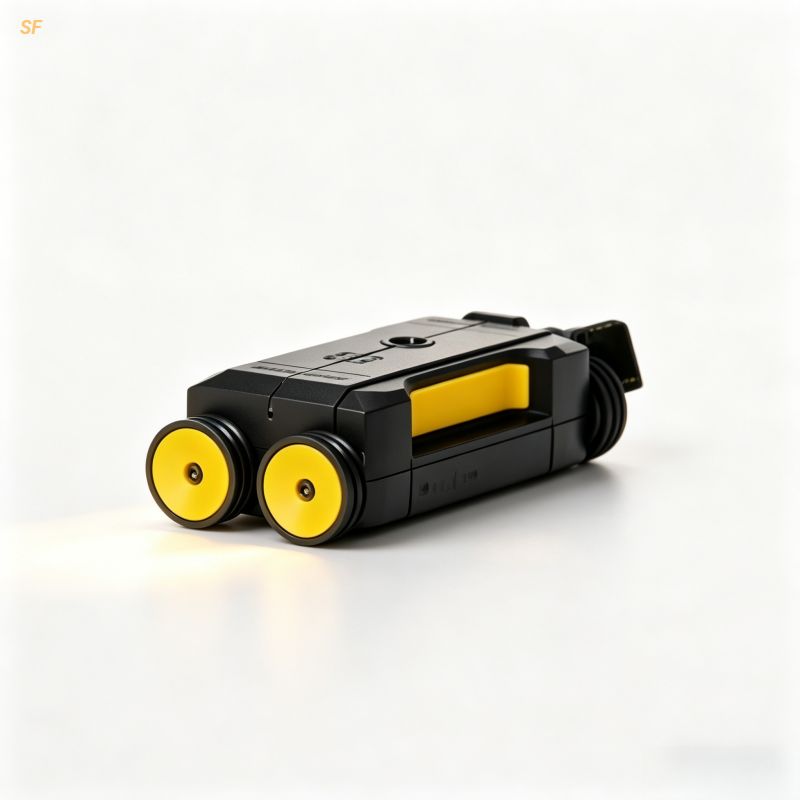

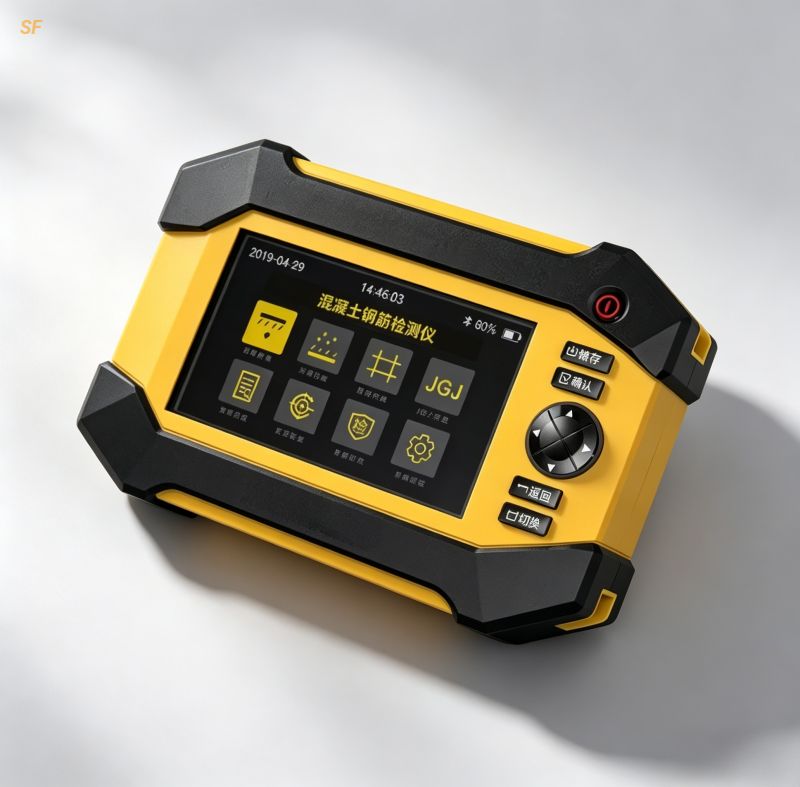

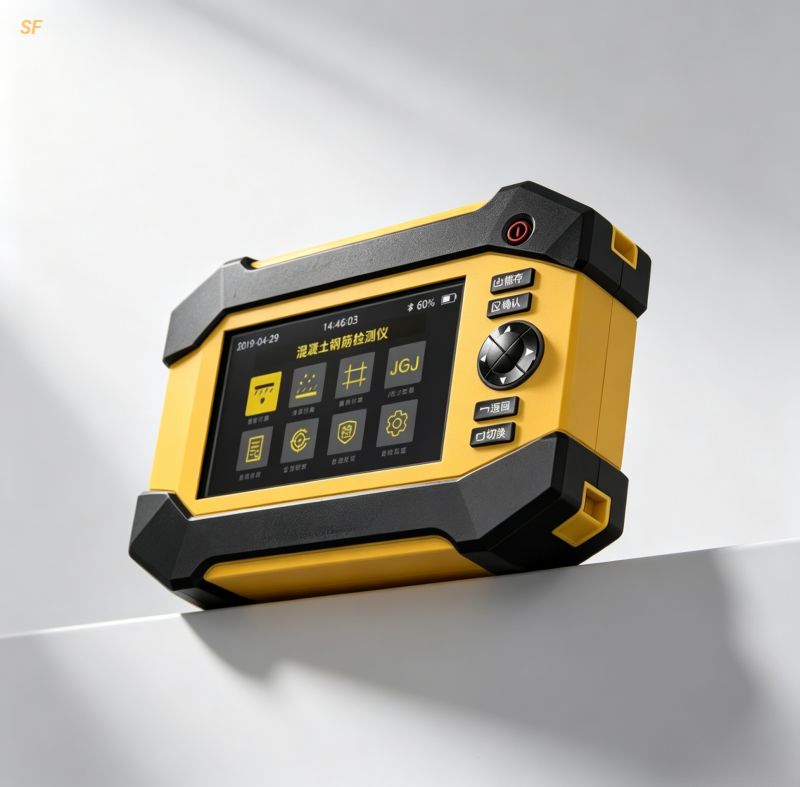

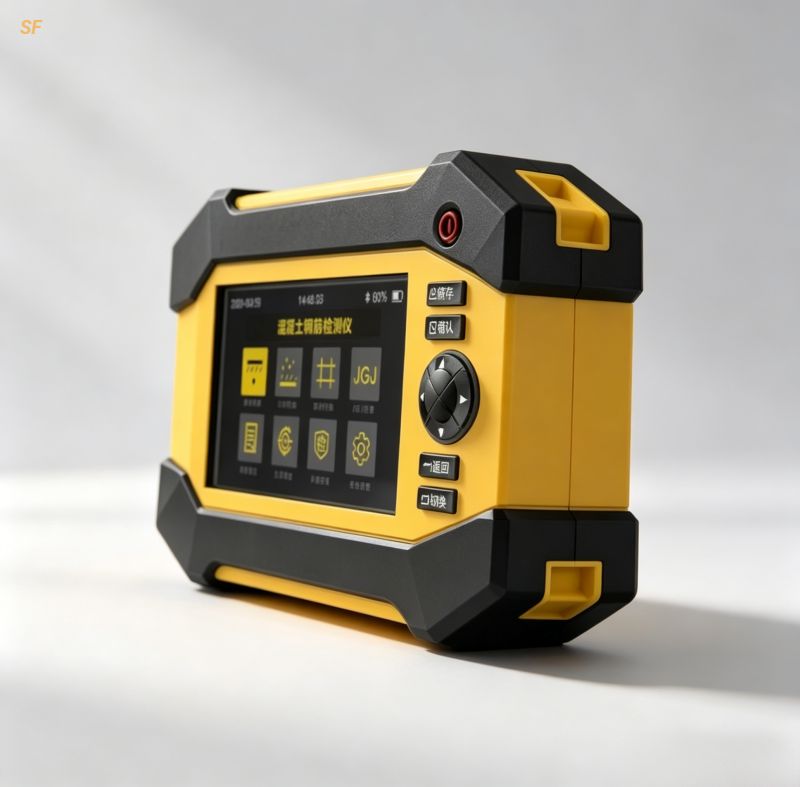

Concrete Rebar Detector Rebar Scanner Covermeter Rebar Locator Integrated Non-Destructive Testing NDT Equipment for Building Inspection

The concrete rebar detector uses electromagnetic pulse induction technology with multiple coil configurations to generate magnetic fields. When the probe scans the concrete surface, eddy currents are induced on the rebar surface, and the device calculates rebar depth, position, and diameter based on magnetic field changes. Integrated design combines main unit and sensor coil. A high-brightness color display shows waveforms and values in real time. Supports multiple scan modes (grid scan, profile scan) for rebar location, cover thickness, spacing, and diameter estimation. Large storage capacity for multiple components and measurement points, with USB data export and PC analysis software for report generation. Low power consumption with long continuous operation. High protection rating. Compliant with BS 1881:204 for reliable results. Lightweight and easy to operate by one person.

• Electromagnetic pulse induction technology, non-destructive testing without damaging concrete

• Integrated design combining main unit and sensor coil for easy portability and one-hand operation

• Rebar location with grid scan and profile scan modes

• Concrete cover thickness measurement for various engineering needs

• Rebar diameter estimation to assist specification identification

• Rebar spacing detection for density assessment

• High-brightness color display for clear waveform and numeric display

• Large storage capacity for multiple components and measurement points

• USB data transfer and PC analysis software for report generation

• Low power consumption, long battery life

• High protection rating for on-site use

• Compliant with BS 1881:204 for reliable results

• OEM customization supported (logo, packaging, user manual, calibration certificate, etc.)
