SF
SF291

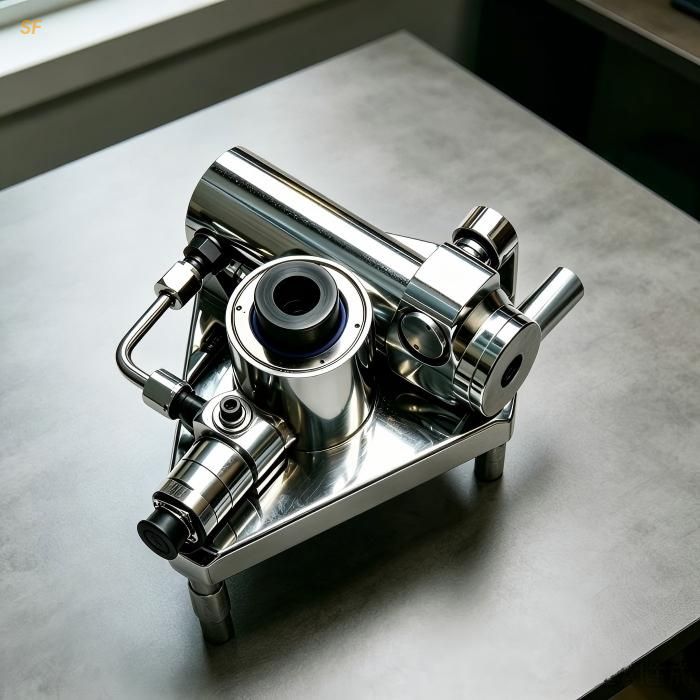

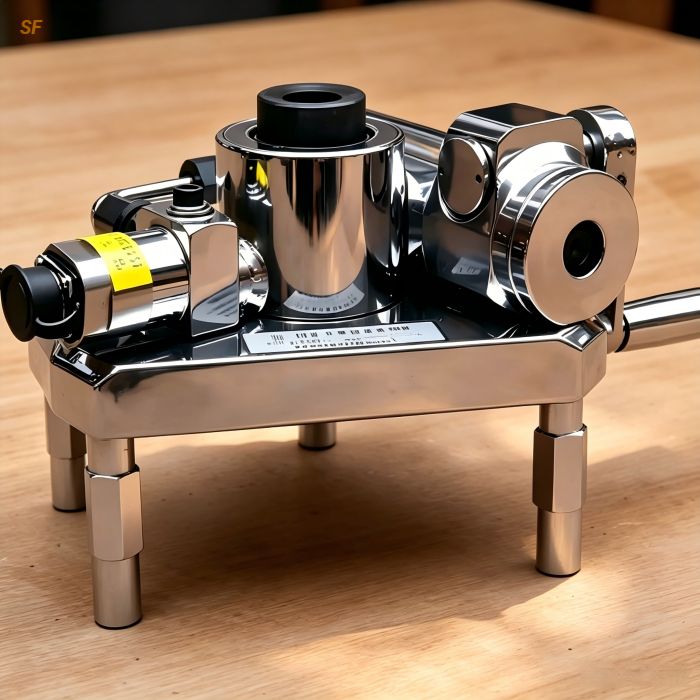

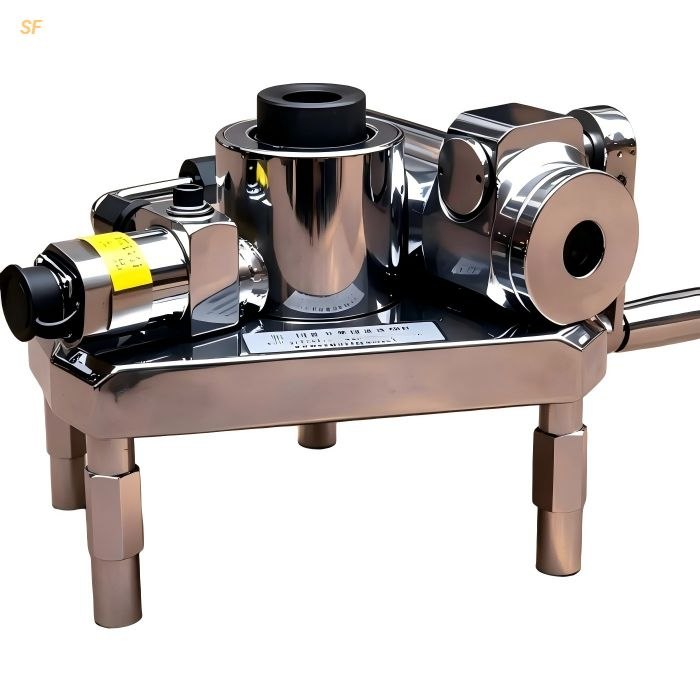

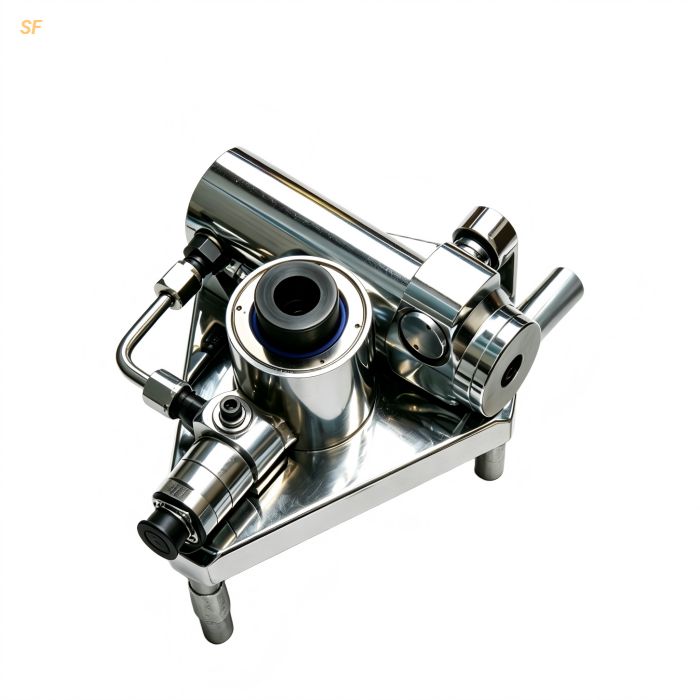

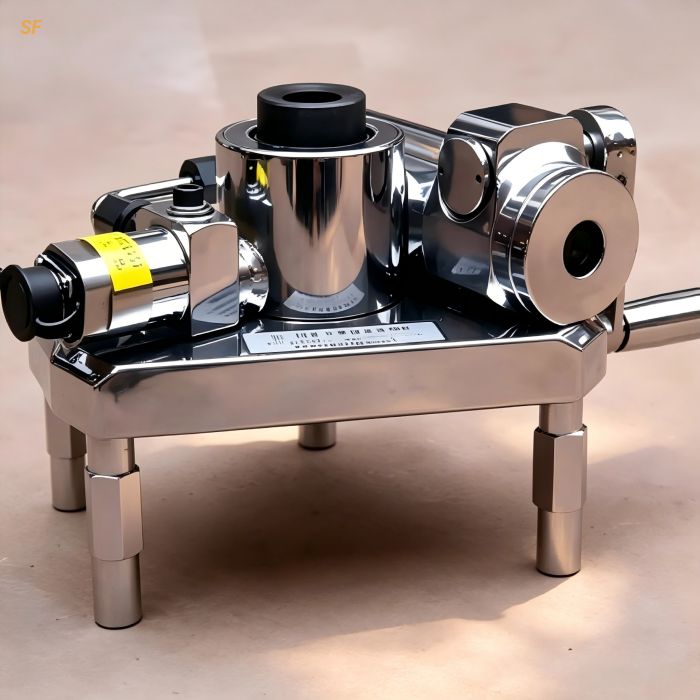

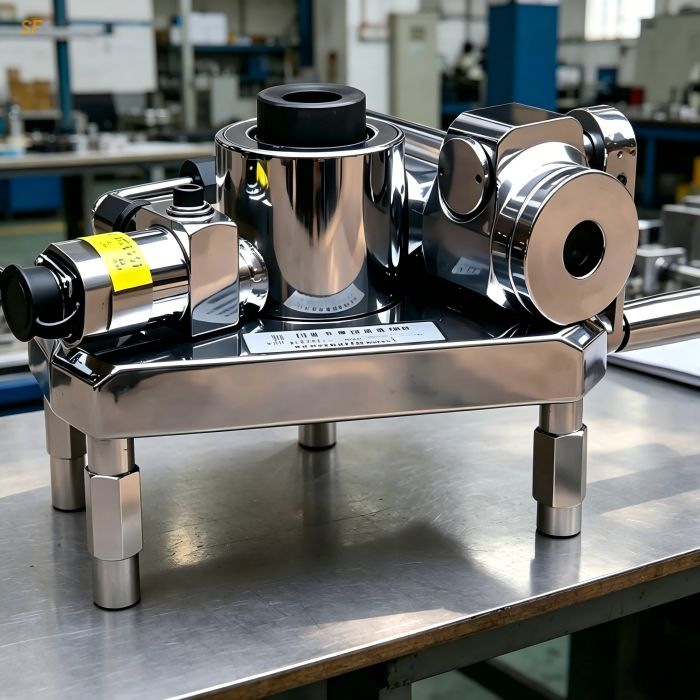

This concrete multifunctional strength tester uses the post-installed pullout method for concrete strength testing (C10~C80) and the three-point reaction support method for ceramic tile bond strength testing in construction projects. Multiple functions in one unit, suitable for on-site pullout strength testing.
Test Principle:
Concrete Strength: Calculated by measuring the force required to pull an embedded anchor from concrete
Tile Bond Strength: Measured by the tensile force generated on the bonding material
Technical Parameters:
Max pullout force 40kN, cylinder stroke 10mm
Min graduation value 0.001kN, measurement error <2%
Main unit weight only 4.2kg for portability
9V rechargeable battery power supply, no external power required
Digital pressure gauge display for clear readings
Features:
Digital pressure gauge for intuitive data display
Data storage function for easy recording
Lightweight main unit for on-site portability
Mainly used in construction engineering quality testing stations, concrete testing institutions, research universities, construction units, and more for on-site concrete strength and tile bond strength testing.
