| Temp Control Range: | |
|---|---|
| Temp Accuracy: | |
| Humidity Control Range: | |
| Humidity Accuracy: | |
| CO₂ Concentration Range: | |
| CO₂ Concentration Accuracy: | |
| Inner Chamber Size: | |
| Quantity: | |
SF
SF290

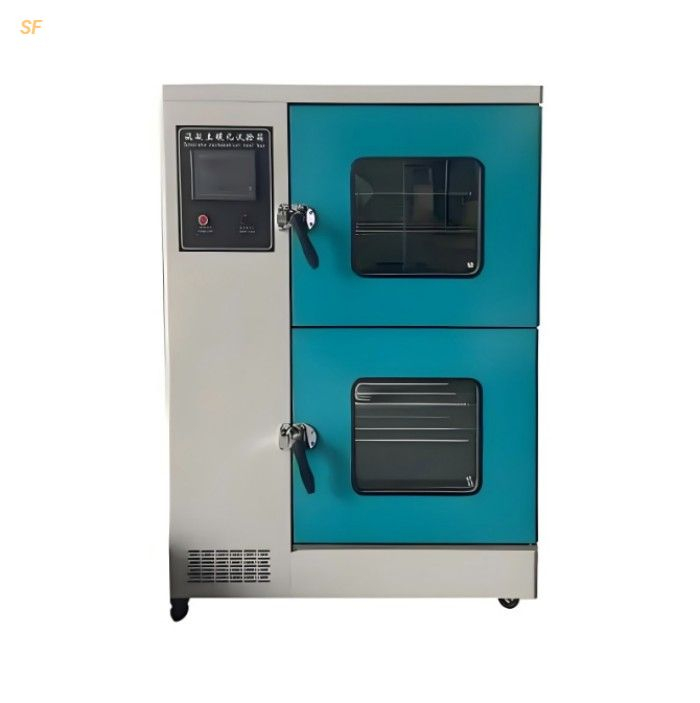

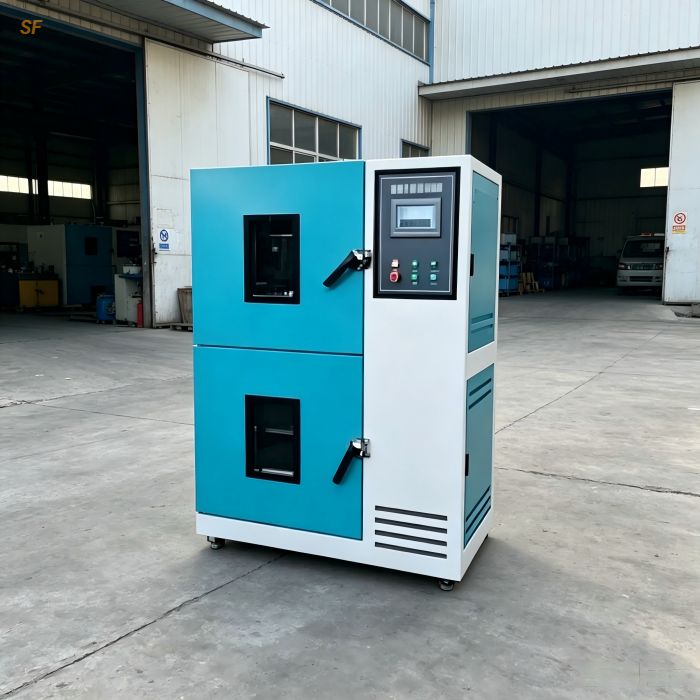

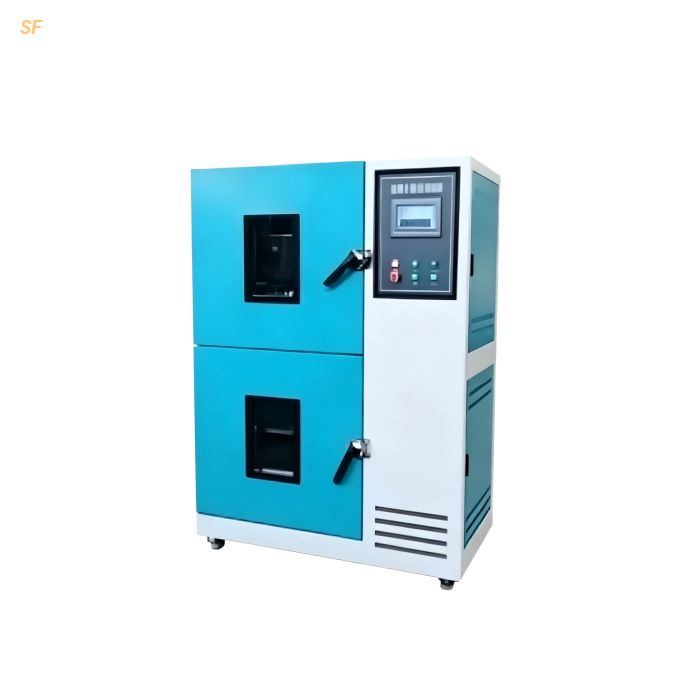

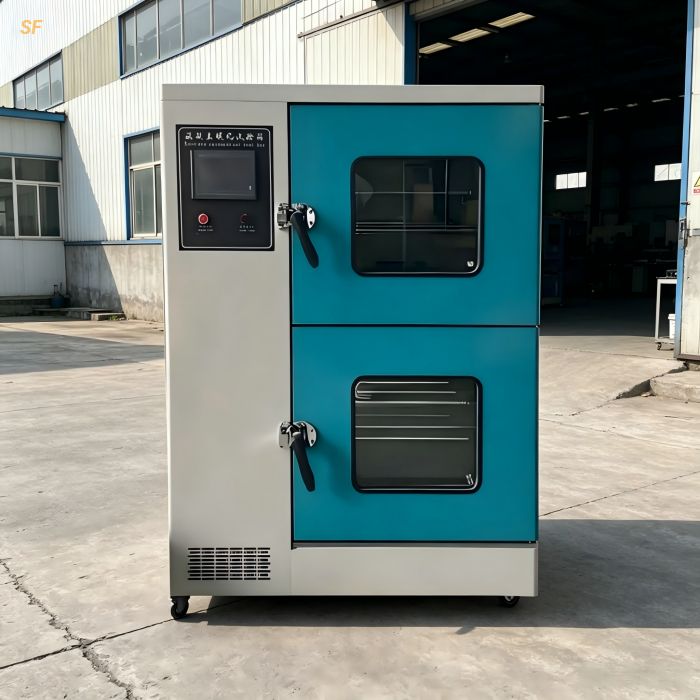

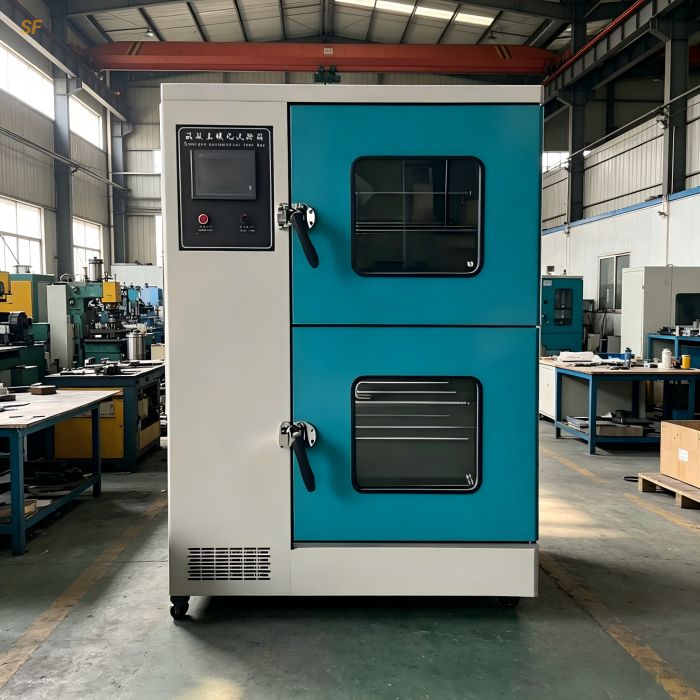

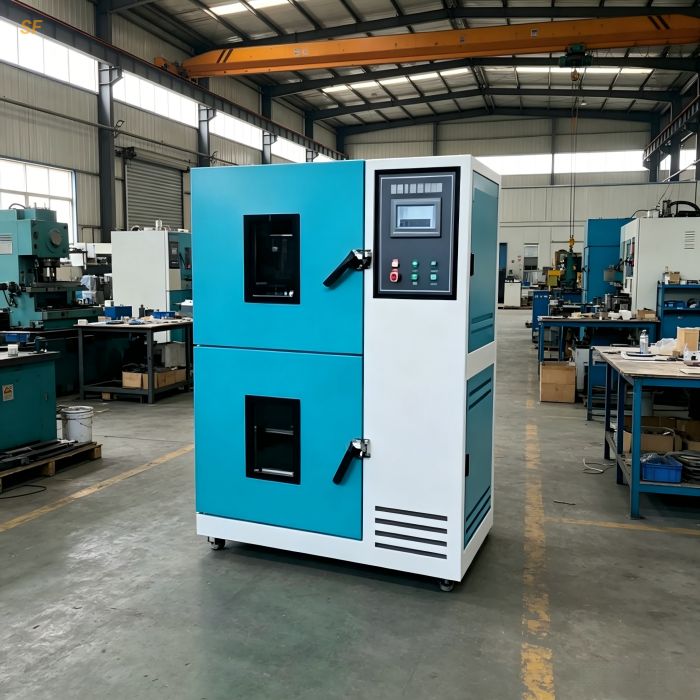

This concrete carbonation test chamber is specifically designed for determining the carbonation depth of concrete specimens under controlled temperature, humidity and carbon dioxide concentration. It is essential equipment for evaluating concrete durability, suitable for concrete structure durability research, building material testing, and engineering quality assessment.
Control System: Microcomputer automatic control system precisely regulates temperature, relative humidity and CO₂ concentration inside the chamber. Multi-program settings with automatic operation for easy use.
Technical Parameters:
Temperature range 15~30℃, accuracy ±1℃
Humidity range 50~90%, accuracy ±3%
CO₂ concentration range 0~20%, accuracy ±1%
Structural Design: Inner chamber size 740×520×1100mm, overall dimension 1200×620×1520mm. Constructed with high-quality stainless steel and insulation materials for long-term stability and excellent sealing.
Power Supply: 220V/50Hz, total weight approx. 200kg.
Mainly used in concrete testing institutions, research institutes, building material laboratories, engineering quality testing stations, and more for carbonation depth determination and durability evaluation of concrete.
