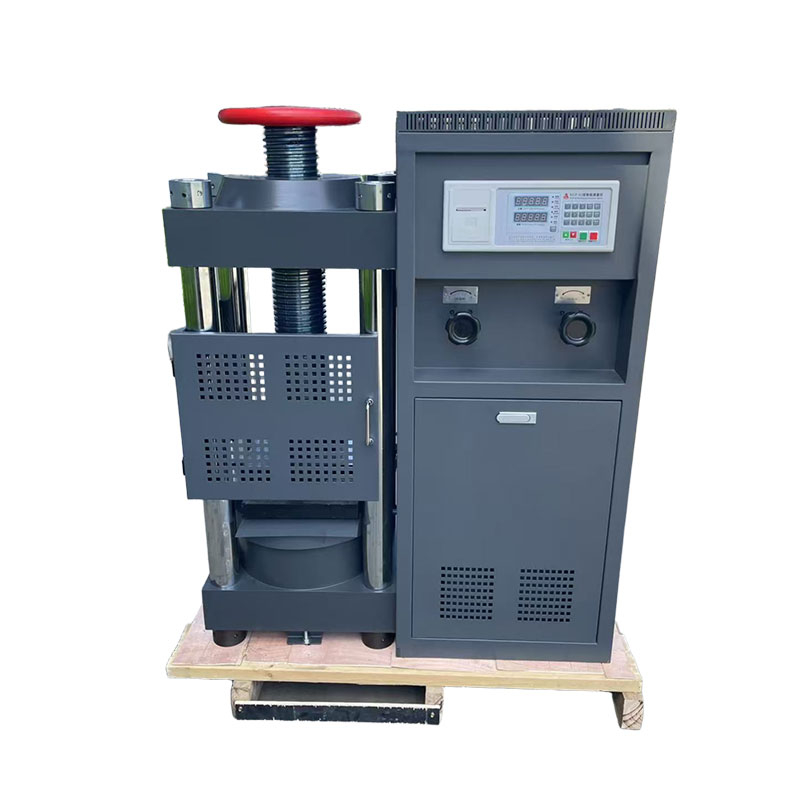

This testing machine is used to determine the compressive strength of building materials such as bricks,stones and concrete.Applicable to construction, building materials, roads, bridges, mines and other engineering construction units.
This machine is electrically hydraulically loaded, force measured by sensors, operated by a computer, and the force value data is printed by a printer and converted into compressive strength.This testing machine complies with the national standard "Standard Test Methods for Mechanical Properties of Ordinary Concrete".
It should be manually controlled for loading speed and is equipped with a loading speed indication device, peak hold, and overload protection functions. It is an essential testing and inspection equipment for engineering units such as construction, building materials, and highway Bridges.
Computerized fully automatic constant stress testing machine
| ||
Conditions of work
| ||
In the room temperature range of 10-30°C
| No vibration, no corrosion medium, no dust
| |
Horizontally mounted on a solid base
| Supply voltage 380V
| |
ATTRIBUTES | ||
Product Name | 2000 K.N. type electro-hydraulic pressure testing machine
| |
Maximum experimental force | 2000(KN) | |
Place of Origin | Hebei,China | |
Brand Name | SF | |
Test Machine Precision Level
| 1(Level) | |
Maximum distance between upper and lower pressure plates
| 340(mm) | |
Standard | ASTM C 109,ASTM T 106 | |
Piston maximum stroke
| 0-50(mm) | |
Upper and lower pressure plate specification
| 250 x 220(mm) | |
Shape Size
| 1000 x wide 600 x high 1300(mm) | |
Net Weight
| 850(kg) | |
Motor Power
| 0.75(KW) | |
Port | Tianjin port | |
