SF
SF29

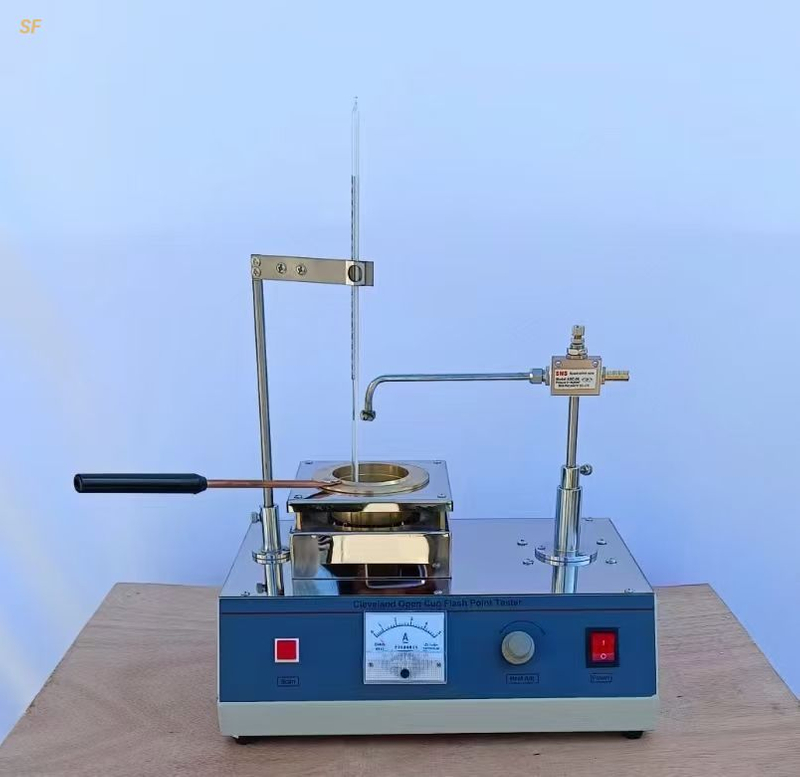

The equipment uniformly heats the sample in the Cleveland standard brass test cup through a heating device. When the temperature is close to the expected flash point, the heating rate is reduced to 5~6°C/min to ensure testing accuracy. The test flame sweeps the sample surface at a fixed frequency with a standard size (3.2~4.8mm), and the photoelectric sensor automatically identifies the flash phenomenon, recording the temperature at the moment of flash as the flash point; if the sample burns continuously, the fire point temperature is recorded. It has a built-in high-precision PT100 temperature sensor (accuracy ±0.1°C) and atmospheric pressure sensor, which automatically corrects temperature and atmospheric pressure to eliminate the impact of environmental factors on testing results. The fully automatic model is equipped with automatic ignition, flame monitoring, overheat protection, automatic shutdown and other functions, requiring no manual intervention throughout the process to ensure the accuracy and repeatability of testing results.
1. High-precision Testing: Adopts imported PT100 temperature sensor with temperature control accuracy of ±0.1°C, fully meeting the requirements of international standards, with good repeatability of testing results; 2. Fully Automatic & Intelligent: One-key start to automatically complete heating, ignition, detection, correction, data storage and report printing, reducing manual operation errors; 3. Perfect Safety Protection: Equipped with multiple safety devices such as overheat protection, automatic flameout, flame monitoring and emergency stop button to ensure the safety of operators and equipment; 4. Durable Material: Stainless steel body + brass test cup, corrosion-resistant, high temperature resistant, suitable for frequent use in laboratories and overseas transportation; 5. Multi-standard Compatibility: Supports multiple international standards such as ASTM, ISO, IP and AASHTO to meet the testing needs of different regions around the world; 6. Easy Operation: Equipped with Chinese-English touch screen with simple operation interface, supporting data export and remote control to adapt to the usage habits of overseas customers.
