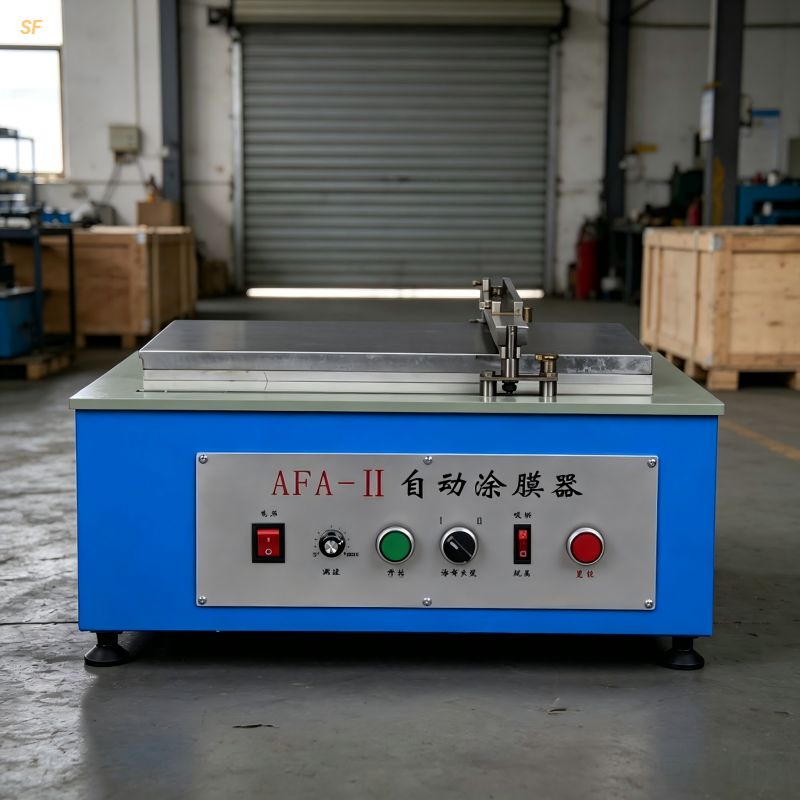

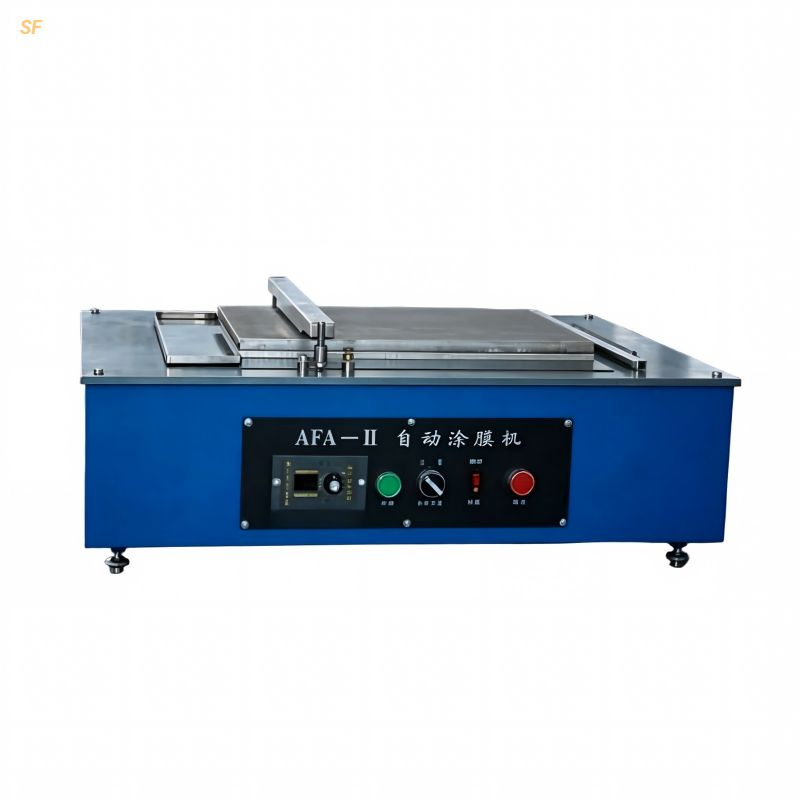

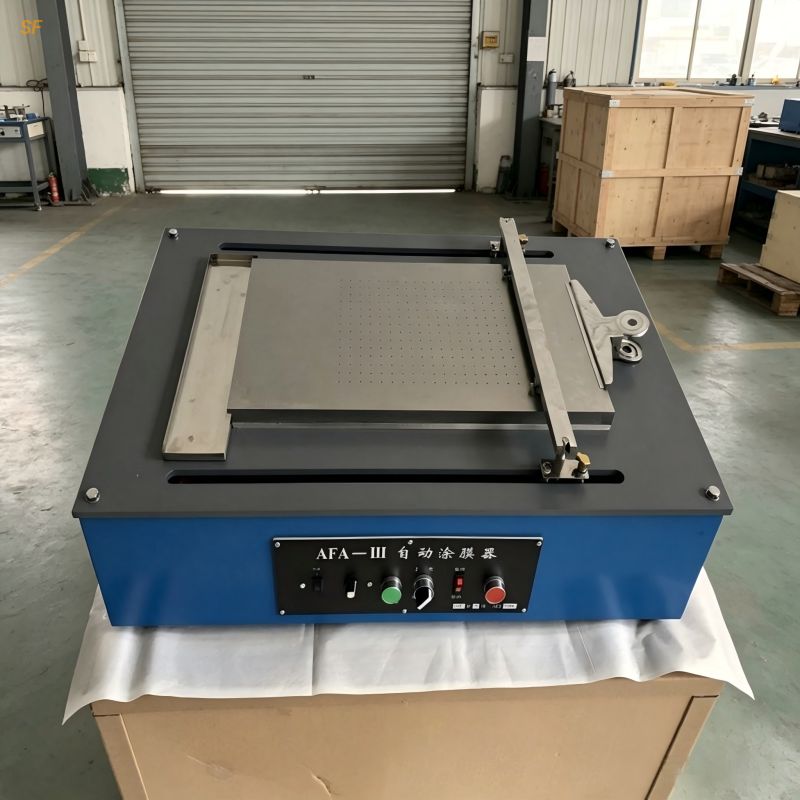

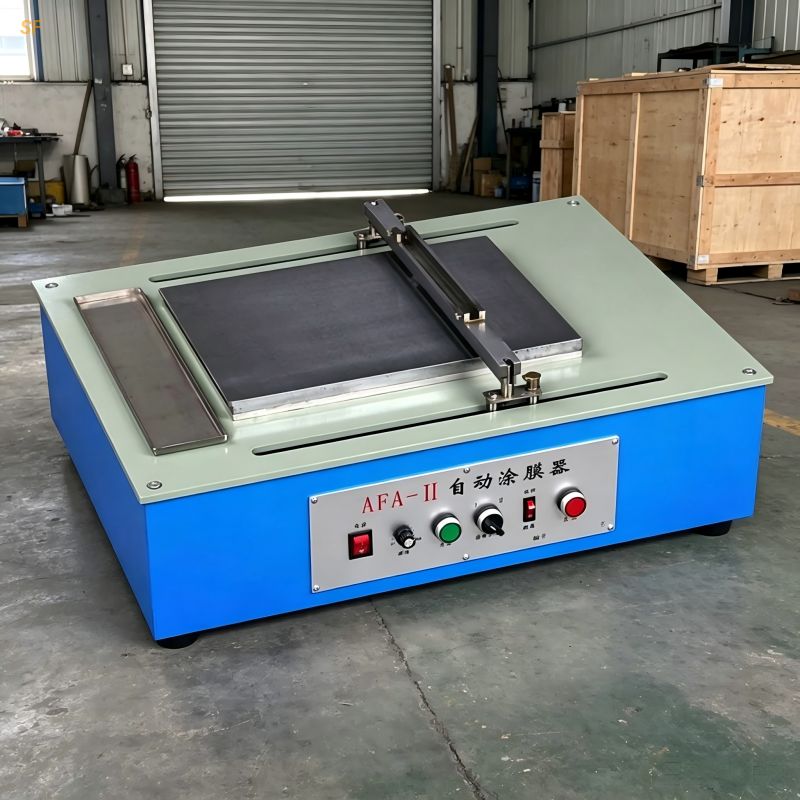

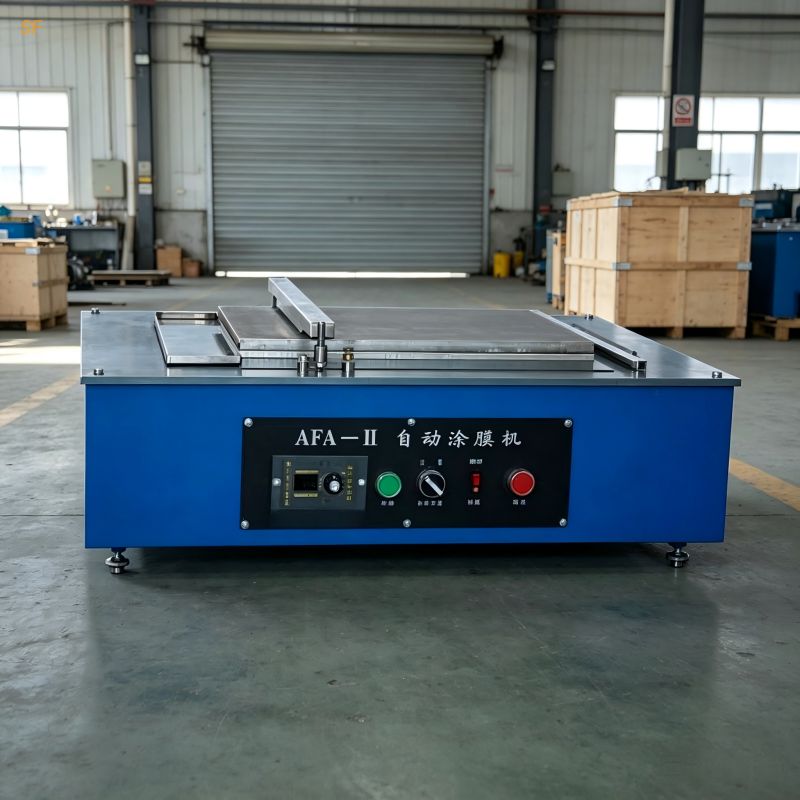

Automatic Film Applicator Vacuum Adsorption 300×200mm Variable Speed

Product Features & Attributes
This automatic film applicator is used to prepare uniform coating films on standard substrates in paints, inks, adhesives and other industries, effectively reducing human errors caused by different coating speeds and pressures. It is ideal film preparation equipment for coating laboratories, quality testing institutions and research universities.

Working Principle: The vacuum adsorption system holds the substrate flat on the coating base. The adjustable-speed transverse push rod moves the film applicator at a constant speed, forming a uniform coating film. Vacuum adsorption ensures the substrate remains flat and wrinkle-free, greatly improving film reproducibility.

Structure:

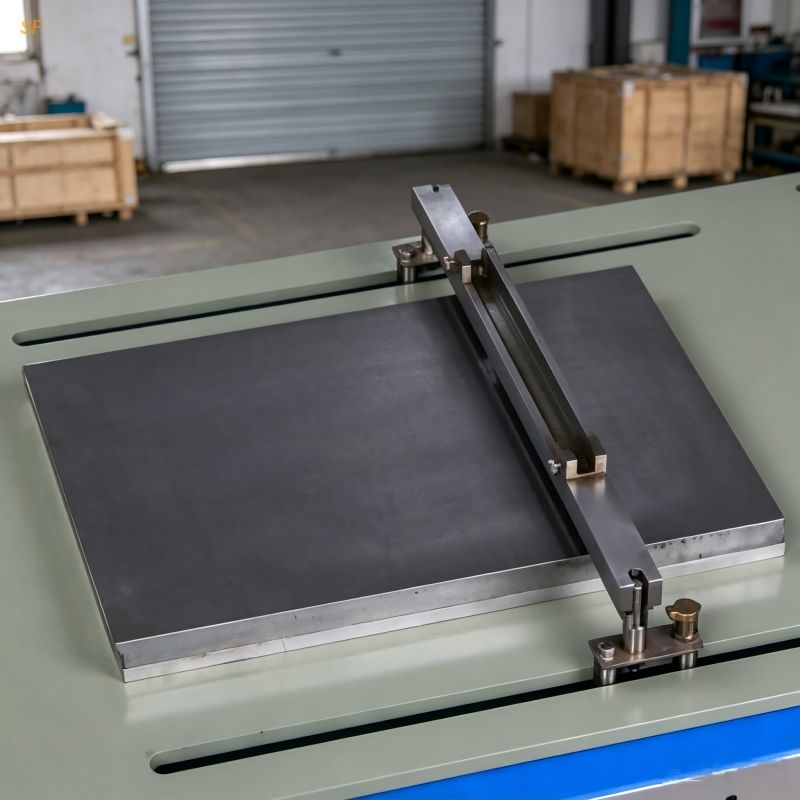

• Coating base: Vacuum adsorption platform, 300×200mm

• Transverse push rod: Drives film applicator at constant speed

• Vacuum pump: Provides adsorption power

• Control system: Speed adjustment, length setting, start/stop control

Technical Features:

• Vacuum adsorption system for flat substrate and uniform coating

• Coating speed 0~10cm/s variable speed for different coating characteristics

• Max coating length 300mm for standard specimen preparation

• Removable coating base for easy cleaning

• Stable operation with approx. 65kg weight

• Easy operation, high reproducibility, reduced human error

Operation Steps:

1. Place substrate flat on coating base, turn on vacuum pump for adsorption

2. Seal unused vacuum holes with tape for smaller substrates

3. Select coating length (I: 250mm / II: 370mm), press "Reset" to position push rod

4. Place film applicator in front of push rod, adjust coating width

5. Press "Start" to begin coating

6. Turn off vacuum pump after coating, remove specimen

Maintenance:

• Cover with dust cover after each use to prevent dust ingress

• Clean coating base promptly to maintain flatness

• Do not switch "Coating Length" during operation

• Clean with detergent when oil contamination is present

Available in different specifications: different coating sizes (300×200mm, 400×300mm, etc.), different coating lengths (300mm, 500mm, etc.), and different speed ranges (0-10cm/s, 0-20cm/s, etc.) to suit various substrate sizes and coating types.

Mainly used in paint manufacturers, ink manufacturers, adhesive manufacturers, quality inspection institutions, research universities, automotive coating industry, and more for standard film preparation.
