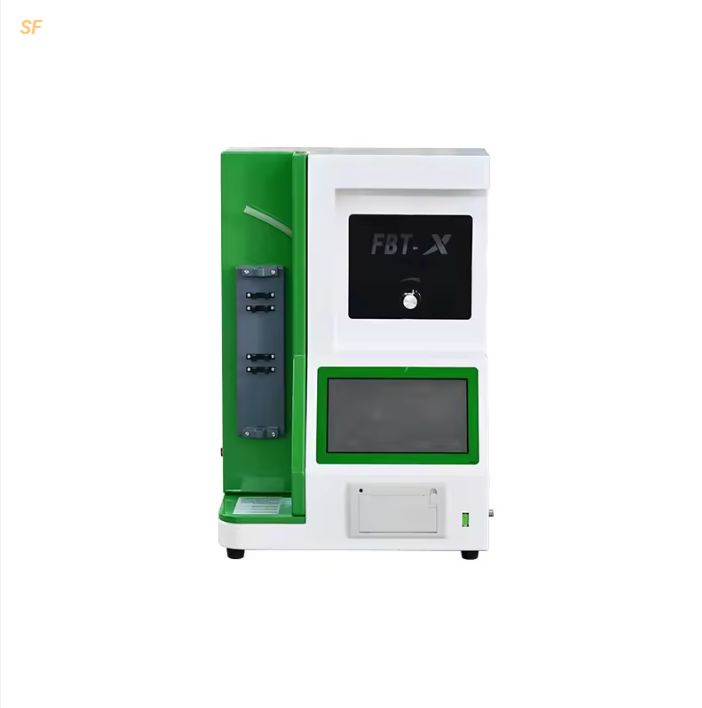

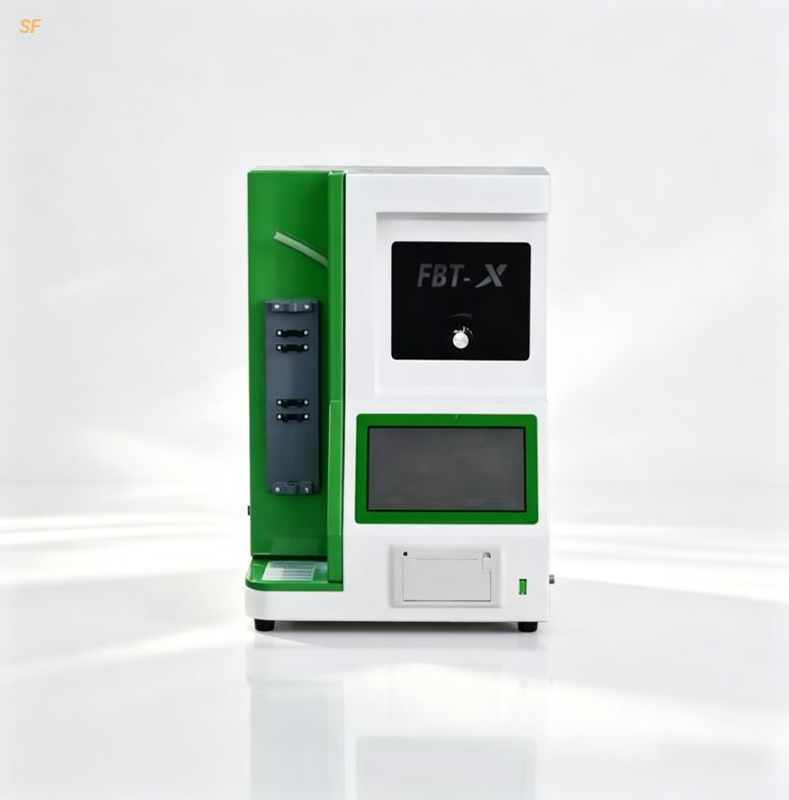

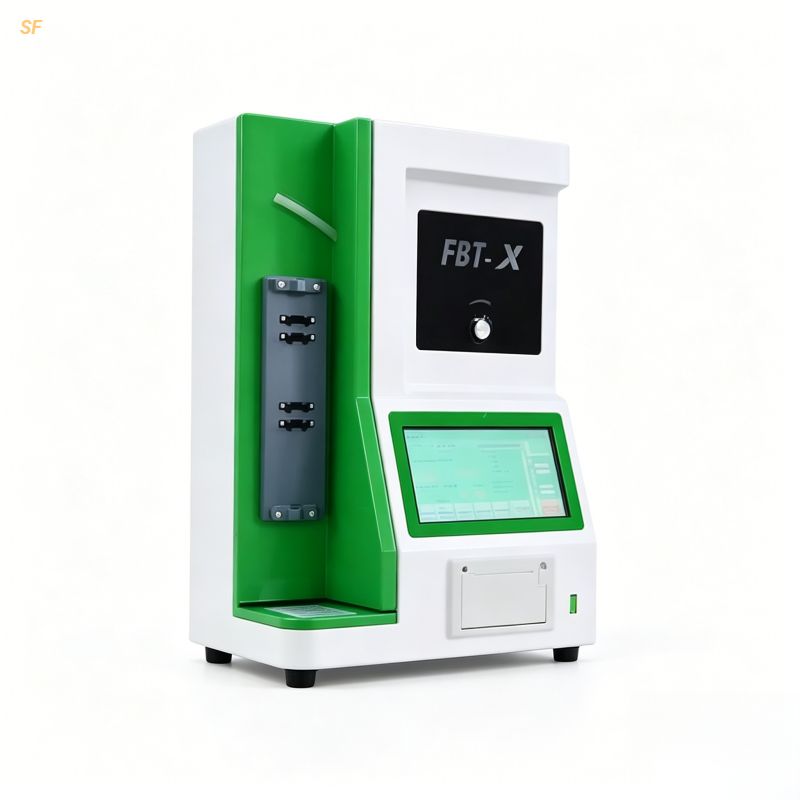

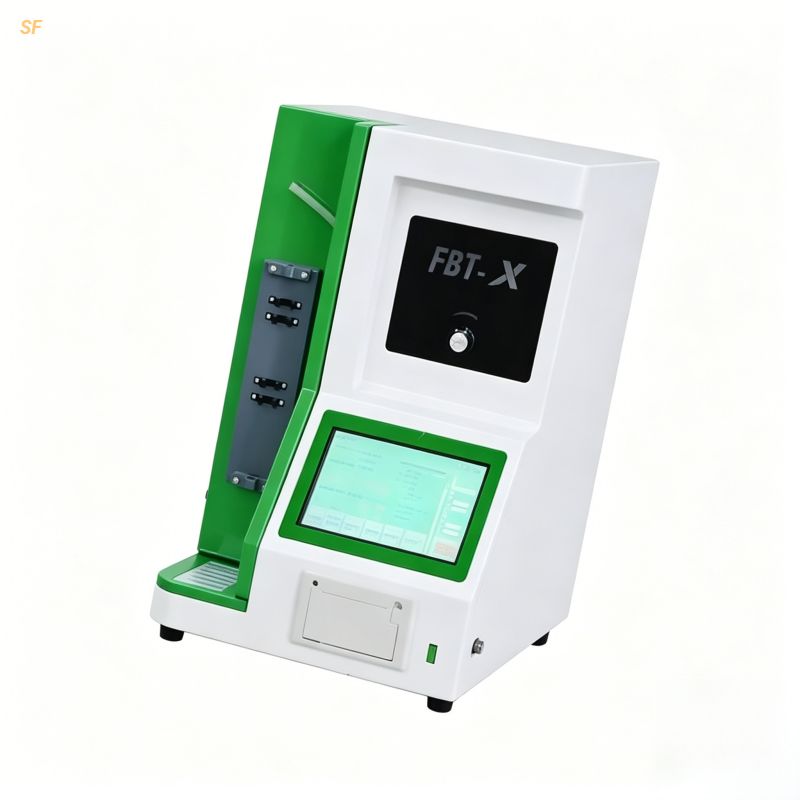

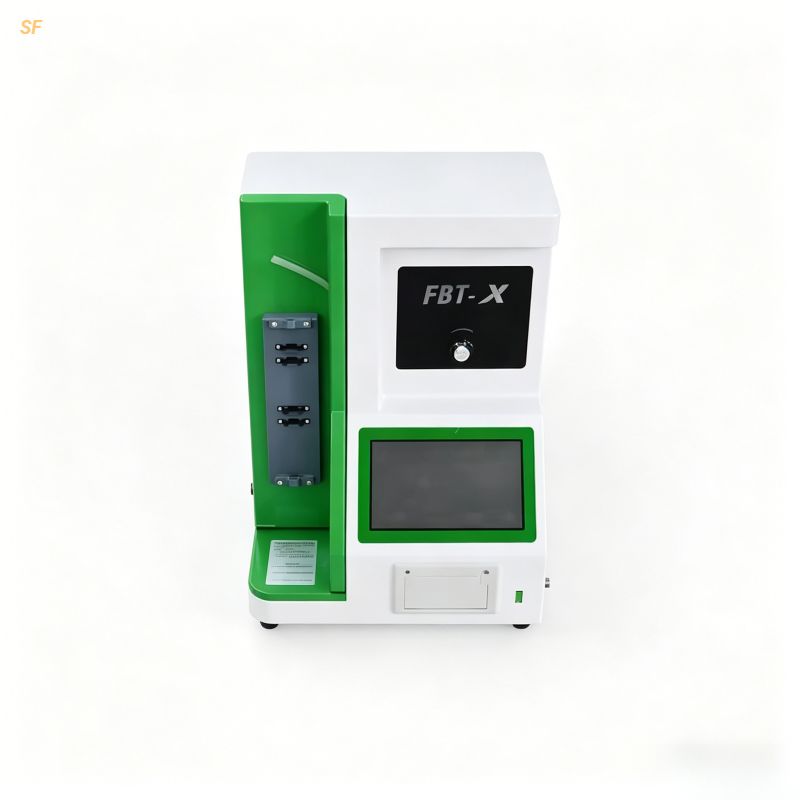

Automatic Cement Specific Surface Area Tester Fully Automatic Blaine Air Permeability Apparatus Cement Fineness Tester Touchscreen Data Storage Lab Equipment ASTM C204

The automatic cement specific surface area tester (FBT-X) uses the Blaine air permeability method, measuring the resistance of a fixed air volume passing through a compacted powder bed to automatically calculate specific surface area. The instrument features a built-in high-precision pressure sensor and intelligent algorithm. The entire test process (air evacuation, timing, calculation, display, printing) is fully automatic — the operator only needs to load the sample — eliminating human timing and calculation errors.

• Fully automatic Blaine air permeability method, automatic except manual sample loading

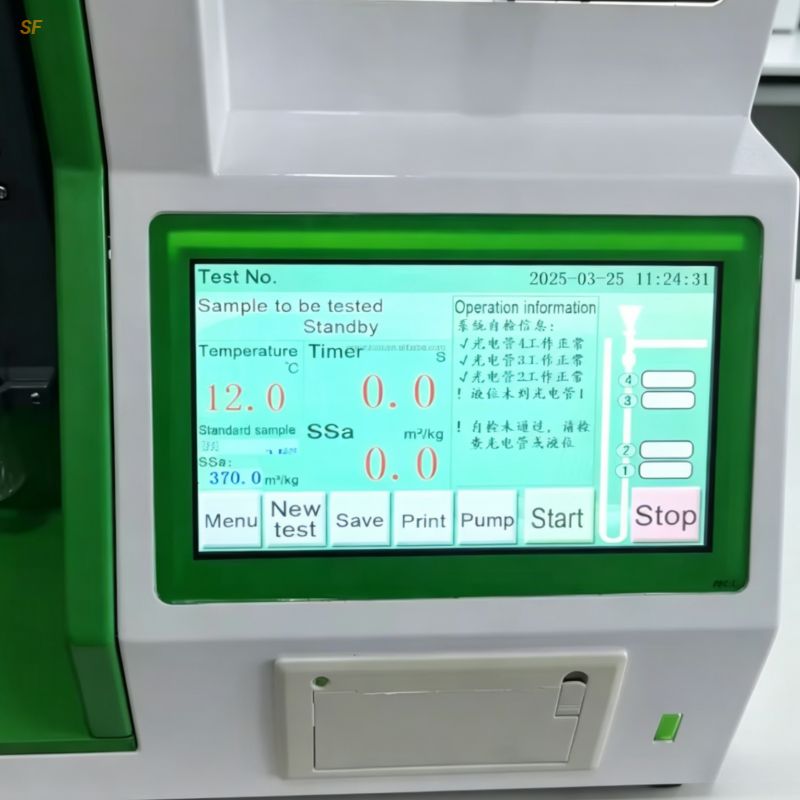

• Color touchscreen for real‑time test data and instrument status

• Adjustable porosity, density and other parameters for wide measurement range

• Continuously adjustable vacuum pump speed for precise air flow control

• One‑key temperature calibration for fast and accurate measurement

• One‑key photoelectric sensor calibration, no light‑blocking ball needed

• Intelligent photoelectric detection adapts to different ambient light

• Large storage capacity for many test and standard samples

• USB data export for PC‑based report generation and permanent storage

• Optional built‑in printer for real‑time or historical data printing

• Real‑time self‑diagnosis and fault indication for easy operation

• Compliant with ASTM C204, BS EN 196‑6 and other international standards

• OEM customization supported (logo, packaging, user manual, calibration certificate, etc.)
